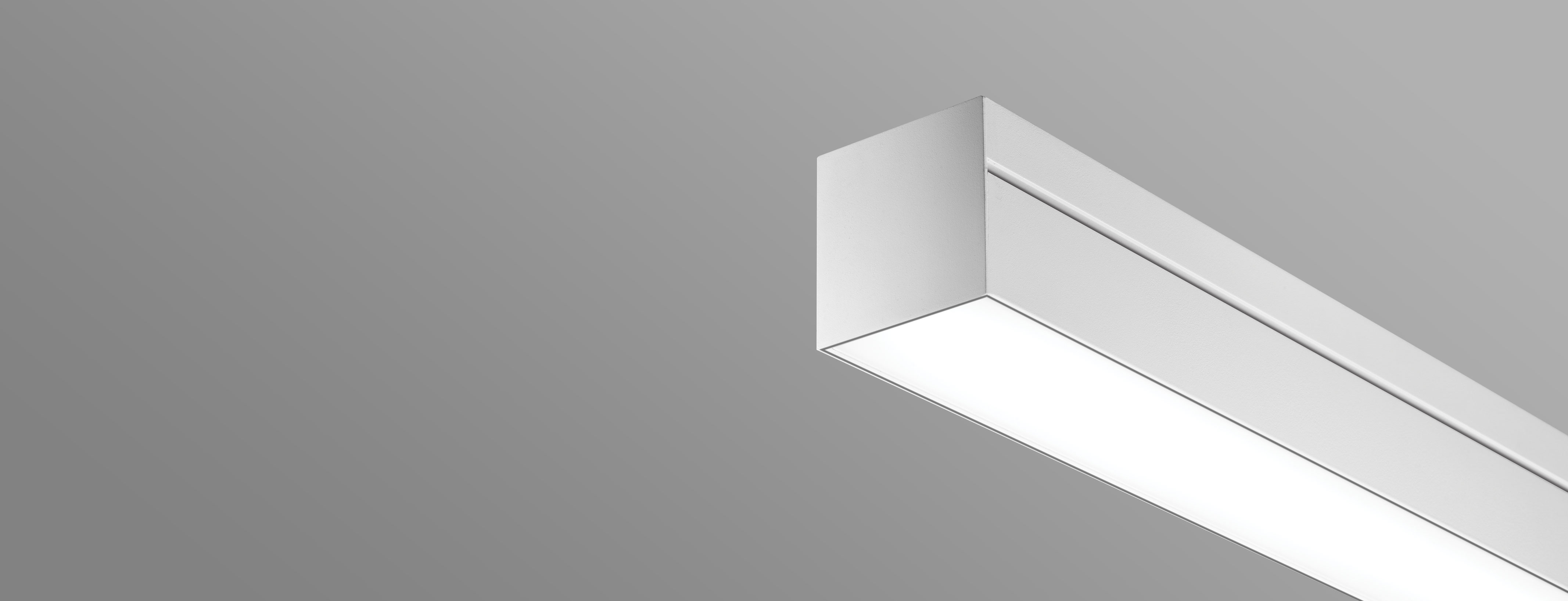

Line, surface linear LED luminaire
Linear lighting seamlessly combines style, functionality, and flexibility. Our LED linear lighting solutions enhance geometric architectural forms, empowering designers to craft truly distinctive designs.

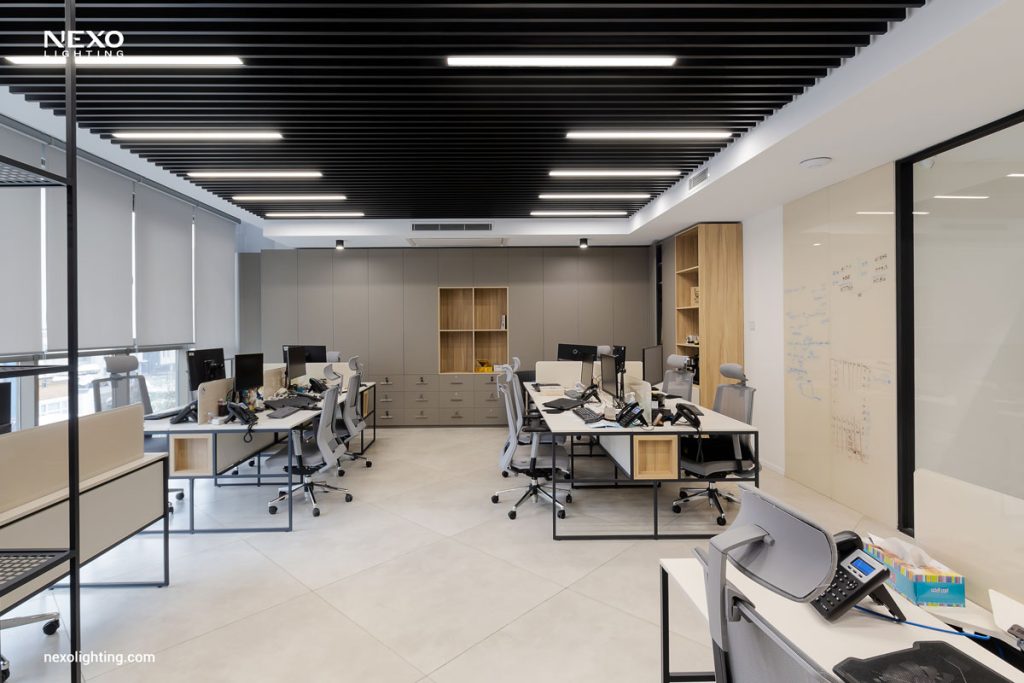

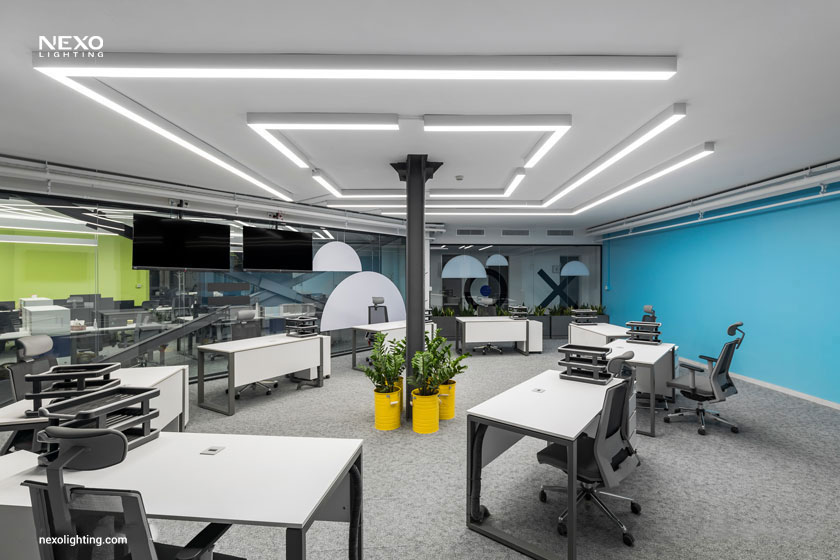

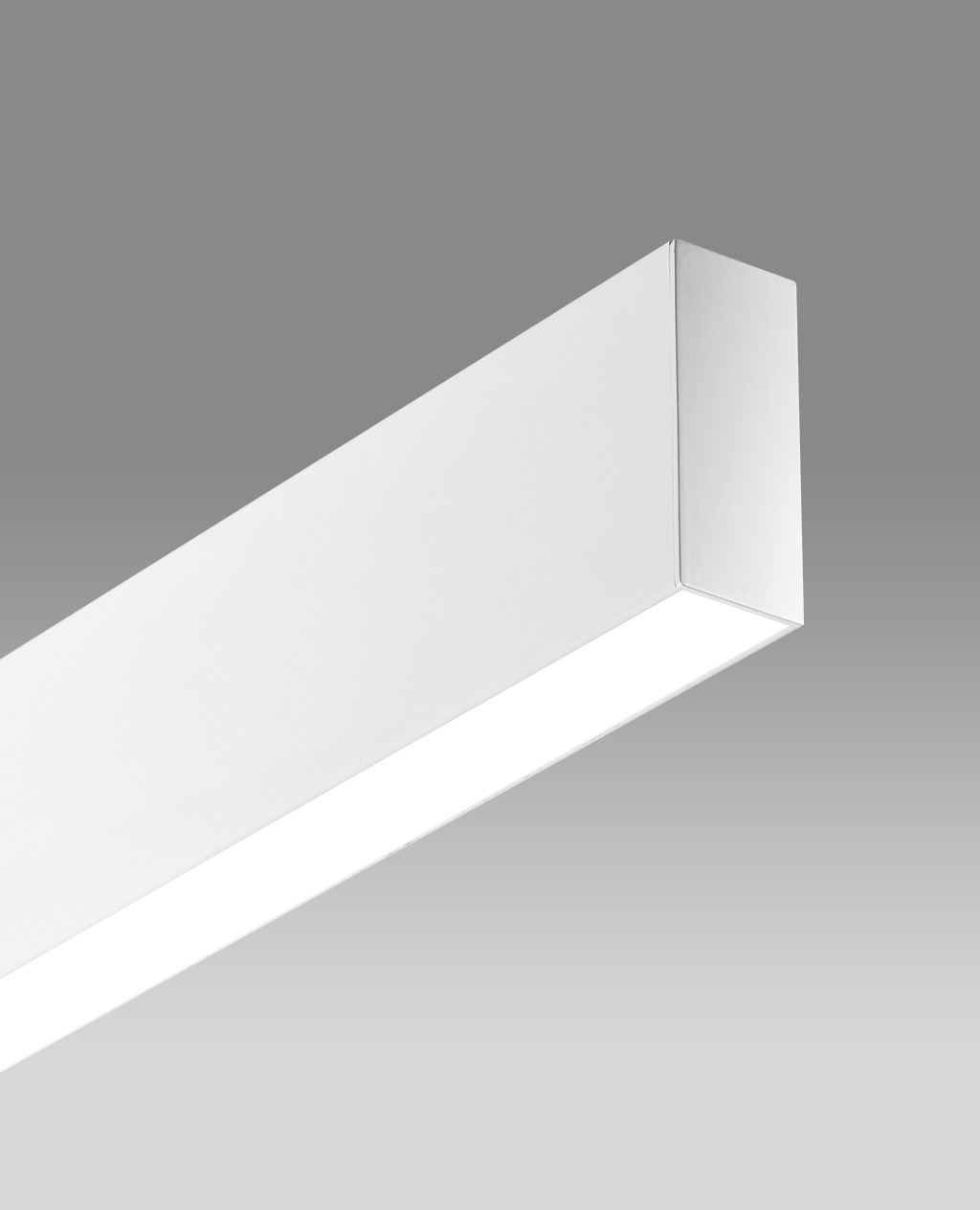

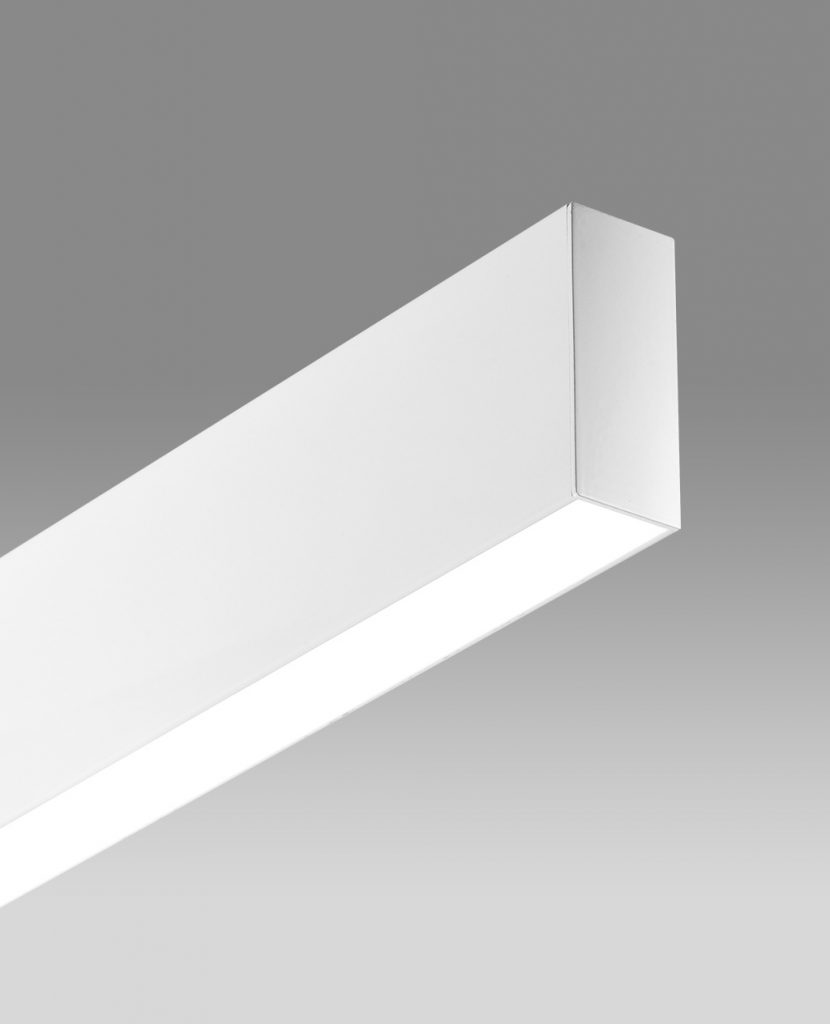

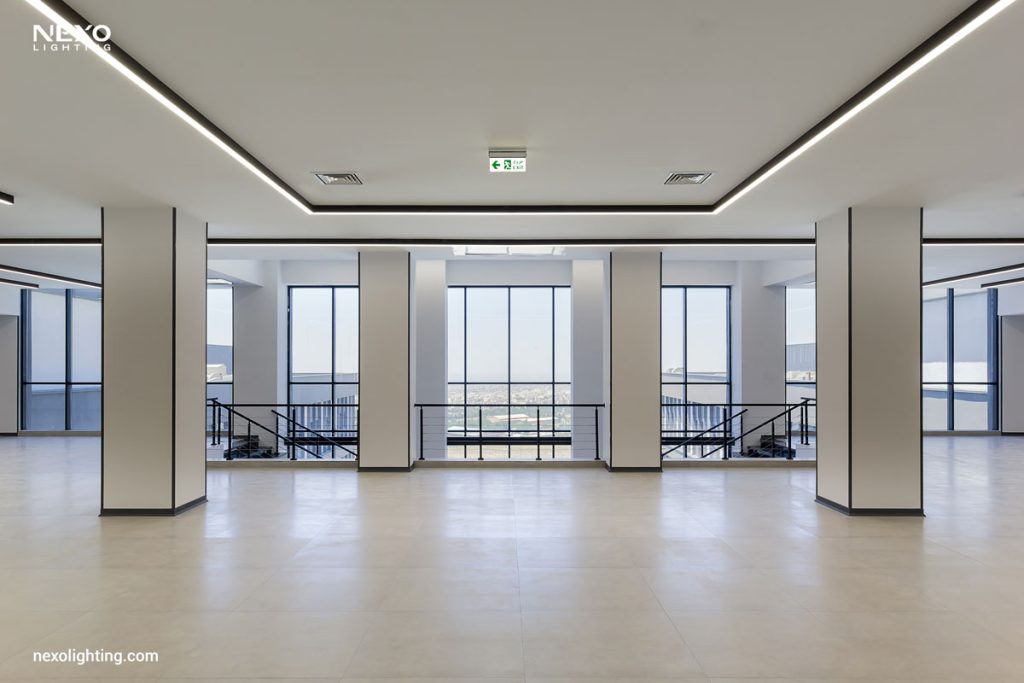

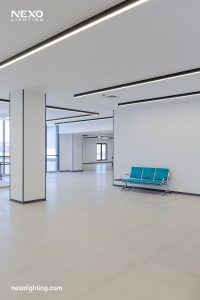

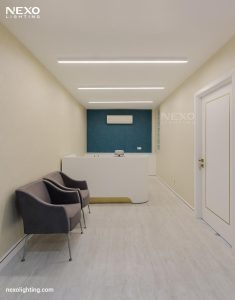

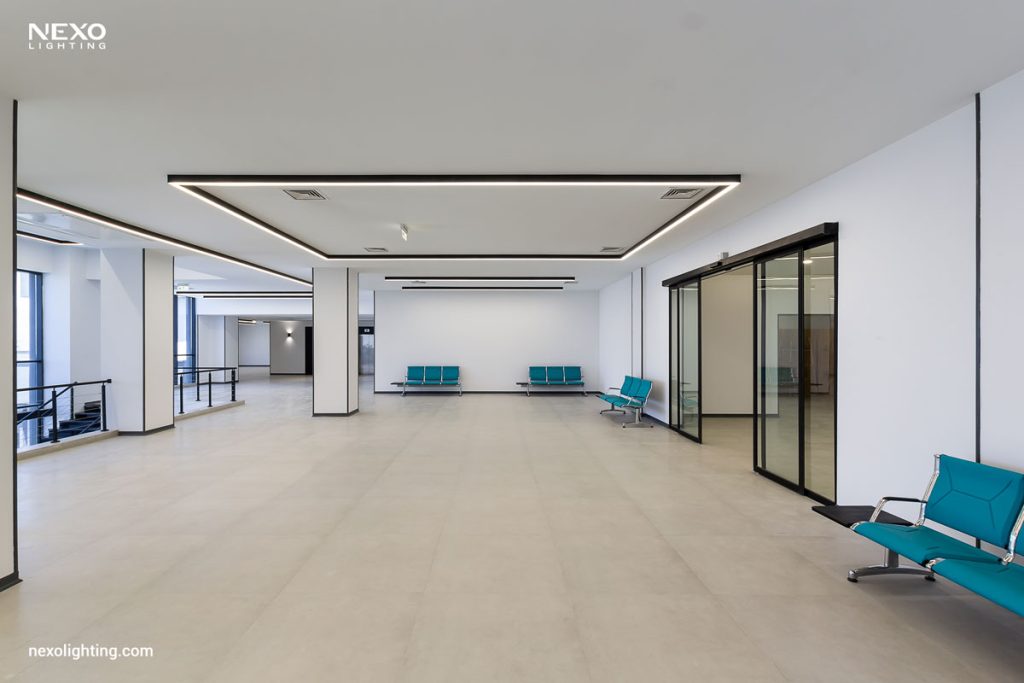

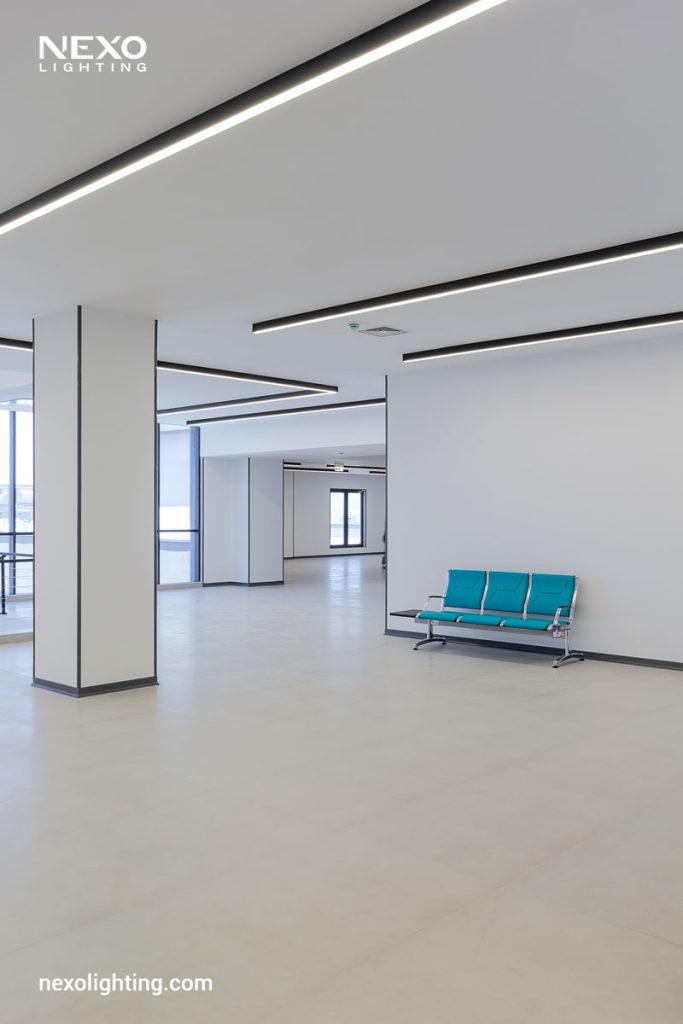

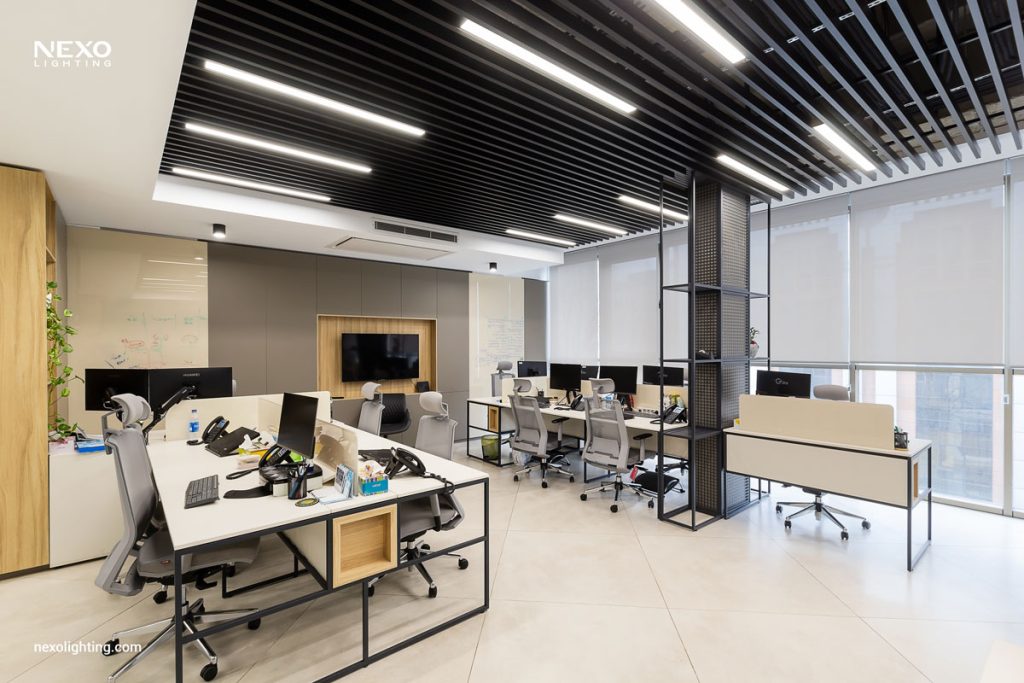

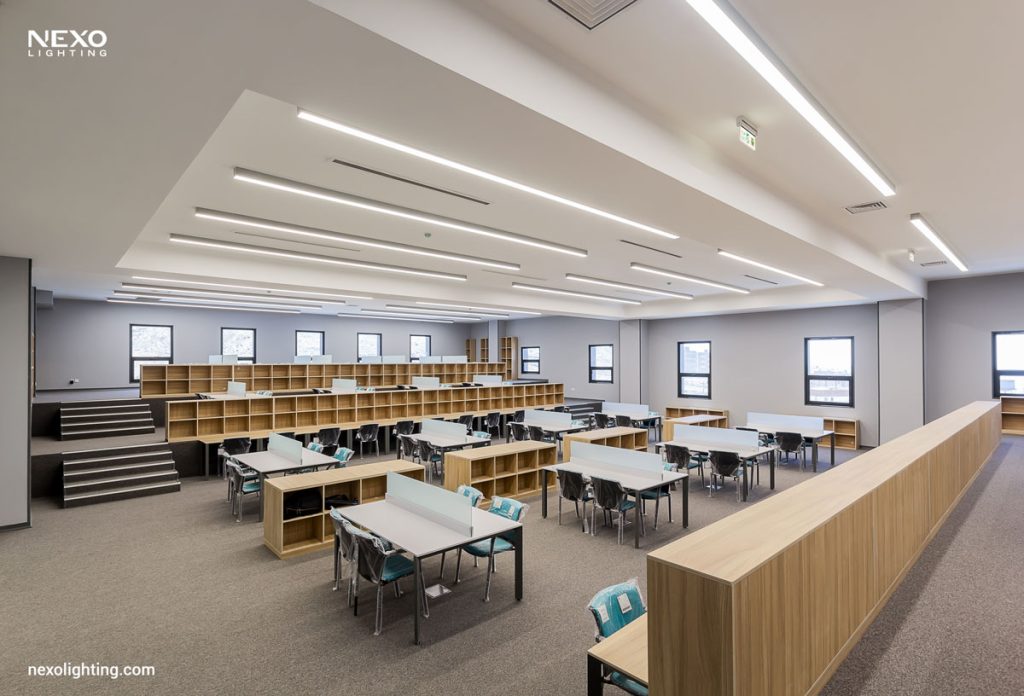

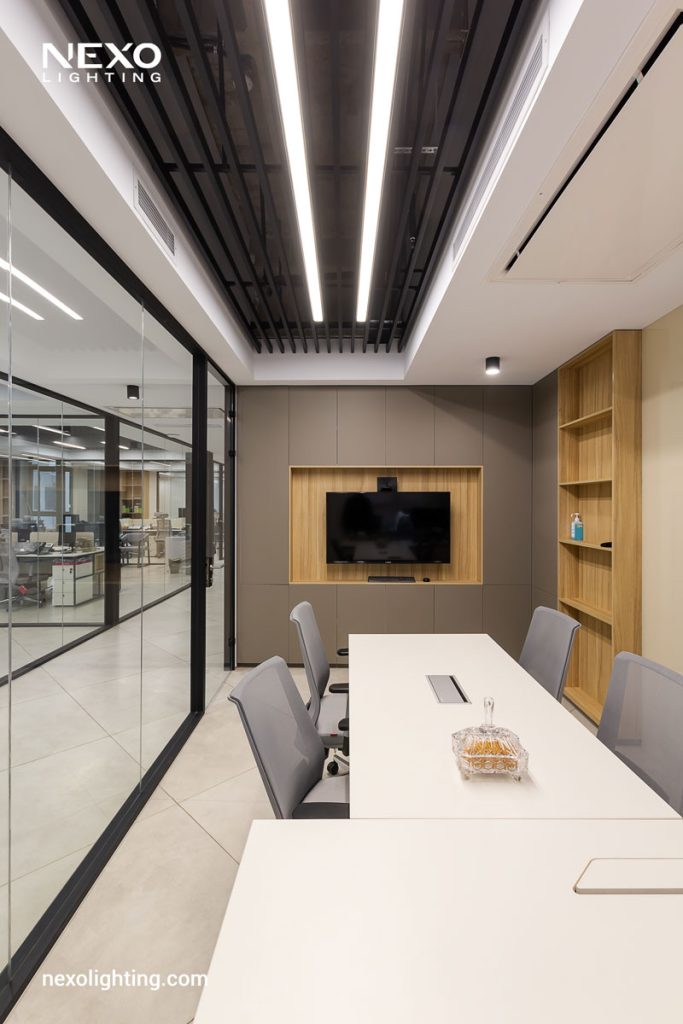

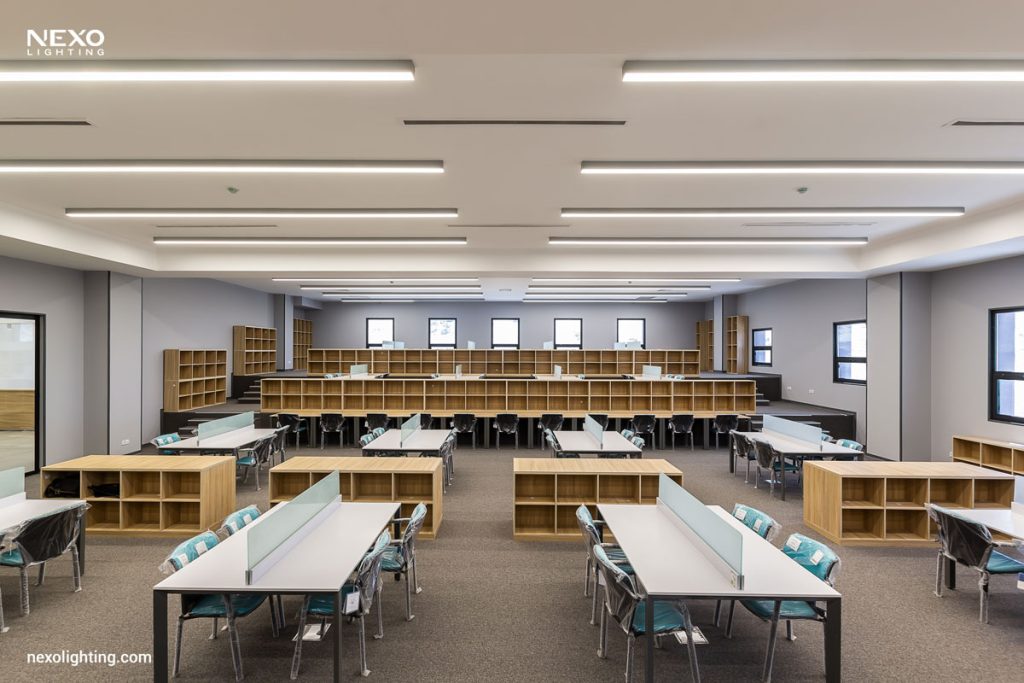

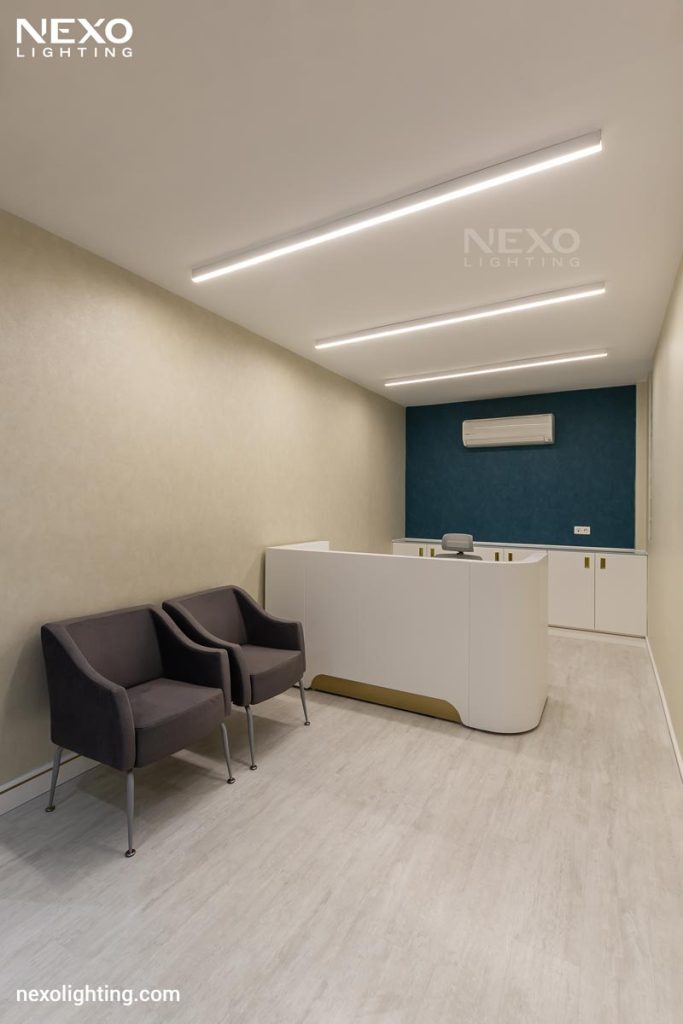

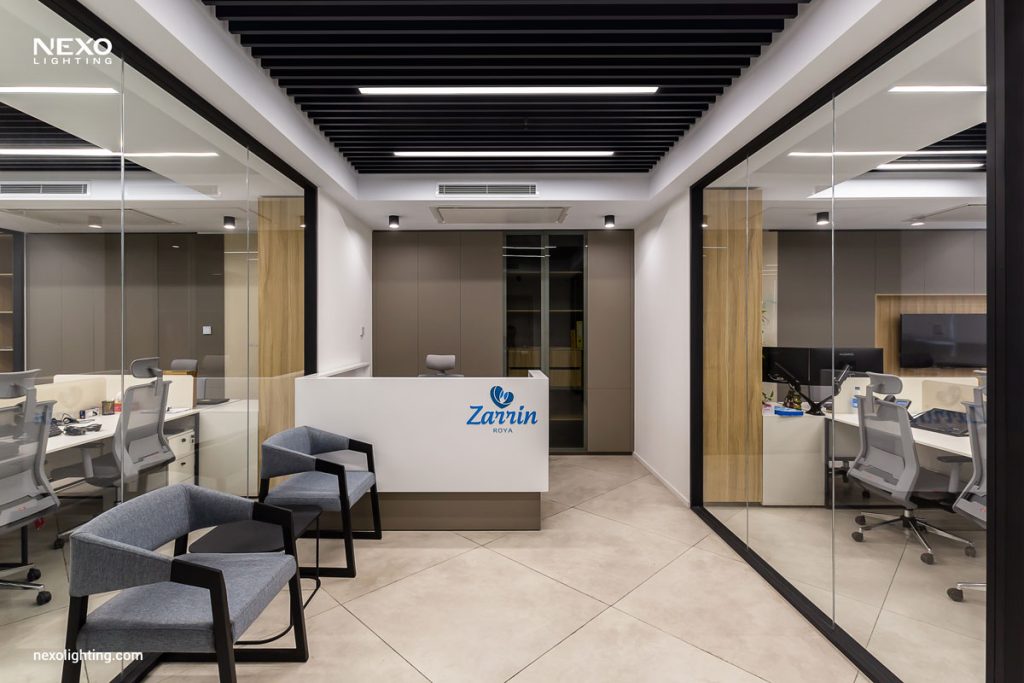

The surface-mounted linear light model Line features a minimalist design with an LED light source. Available in three widths (3.5 cm, 6 cm, and 9 cm) and customizable lengths, it is ideal for various applications, including offices, educational institutions, retail spaces, hotels, residential, and commercial environments.
Includes a 5-year product warranty.
Showing all 3 results
3D Files
3D models and BIM objects including (.Max | .Rvt | .Fbx | .Obj) files.
Cross Section View
Technical detail
LINE NL 30
| Product | power | Luminous flux | Efficacy | Length | |||
| NL 30 114 PM | 33.6 w | 3374 Lm | 100.42 Lm/w | 114 cm | |||
| NL 30 171 PM | 49.4 w | 5061 Lm | 102.45 Lm/w | 171 cm | |||
| NL 30 227 PM | 65.2 w | 6748 Lm | 103.50 Lm/w | 227 cm | |||
| NL 30 284 PM | 81 w | 8435 lm | 104.14 Lm/w | 284 cm | |||
LINE NL 60
| Product | power | Luminous flux | Efficacy | Length | |||
| NL 60 114 PM (H1) | 33.6 w | 44.2 w | 3374 Lm | 4494 Lm | 100.42 Lm/w | 101.67 Lm/w | 114 cm |
| NL 60 171 PM (H1) | 49.4 w | 65.3 w | 5061 Lm | 6741 Lm | 102.45 Lm/w | 103.23 Lm/w | 171 cm |
| NL 60 227 PM (H1) | 65.2 w | 86.4 w | 6748 Lm | 8988 Lm | 103.5 Lm/w | 104.03 Lm/w | 227 cm |
| NL 60 284 PM (H1) | 81 w | 107.5 w | 8435 lm | 11235 Lm | 104.14 Lm/w | 104.51 Lm/w | 284 cm |
LINE NL 90
| Product | power | Luminous flux | Efficacy | Length | |||
| NL 90 114 PM (H1) | 33.6 w | 47.6 w | 3374 Lm | 5516 Lm | 100.42 Lm/w | 115.88 Lm/w | 114 cm |
| NL 90 171 PM (H1) | 49.4 w | 70.4 w | 5061 Lm | 8274 Lm | 102.45 Lm/w | 117.53 Lm/w | 171 cm |
| NL 90 227 PM (H1) | 65.2 w | 93.2 w | 6748 Lm | 11032 Lm | 103.50 Lm/w | 118.37 Lm/w | 227 cm |
| NL 90 284 PM (H1) | 81 w | 116 w | 8435 lm | 13790 Lm | 104.14 Lm/w | 118.88 Lm/w | 284 cm |
