Manna Mini trimless – recessed
Manna Mini trimless – recessed

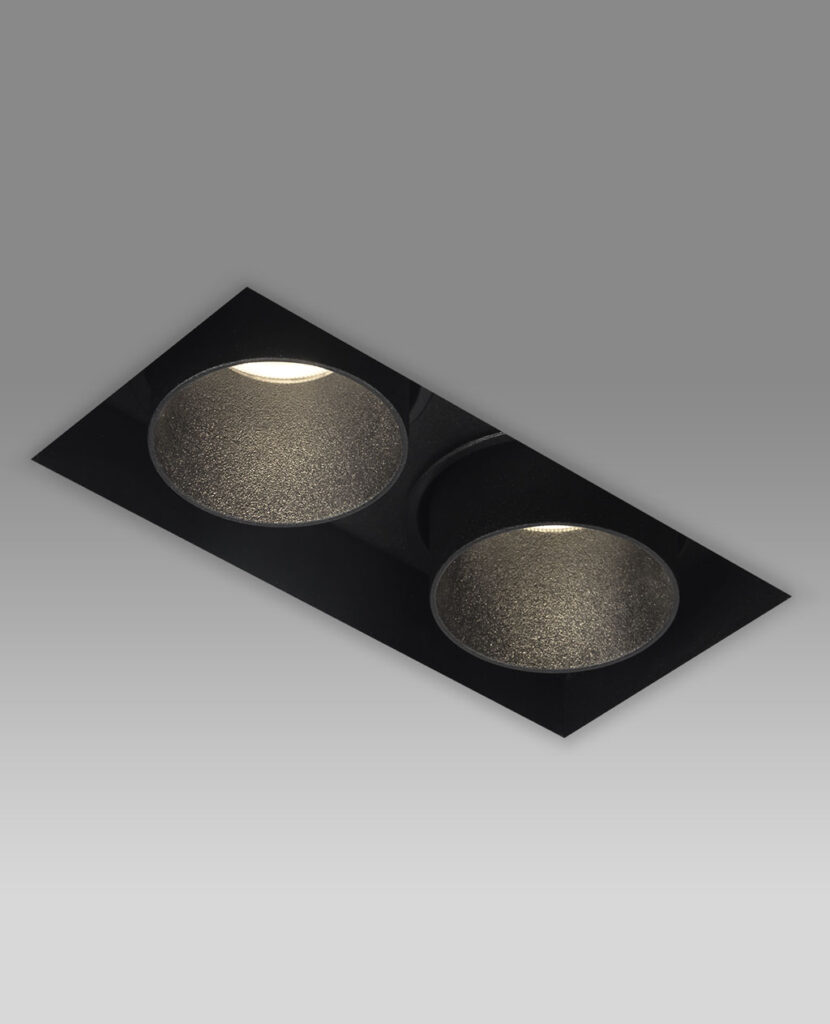

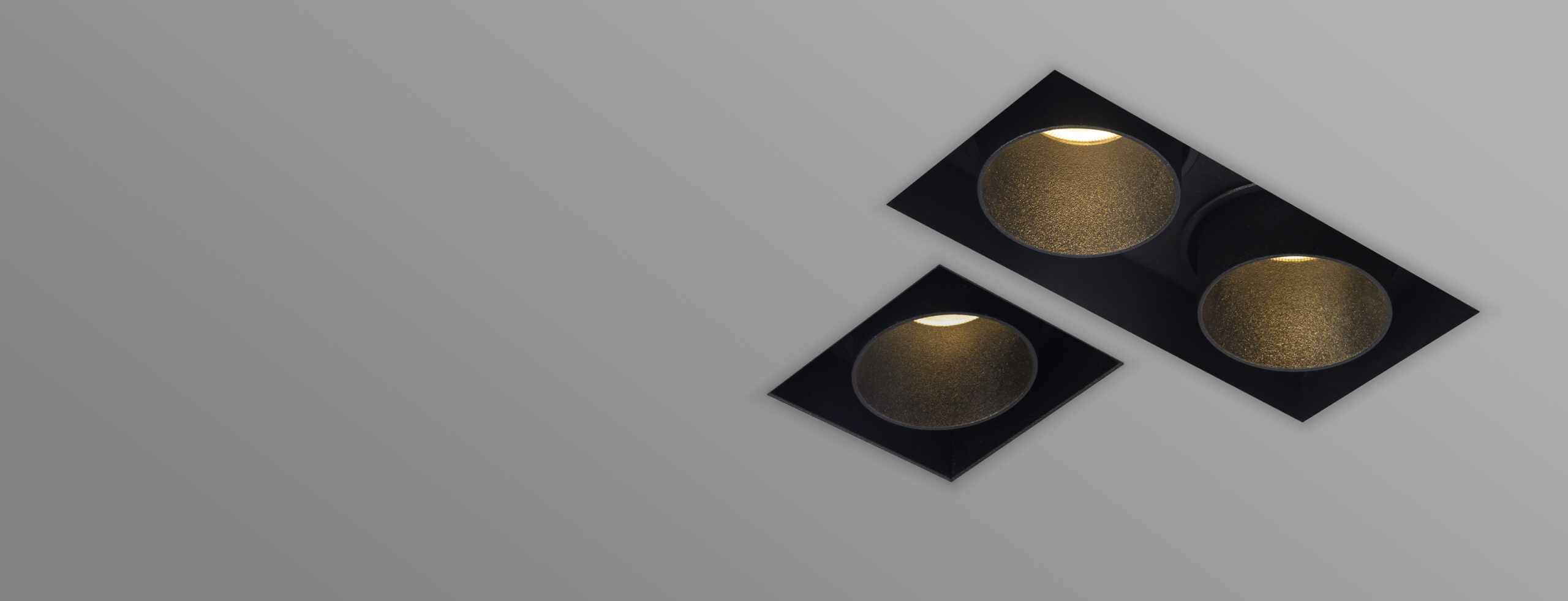

Manna Mini is a trimless recessed LED downlight available in single, double, triple, and other configurations. The luminaire features a rotating body that can pivot up to 30°, allowing you to direct the light in any desired direction.

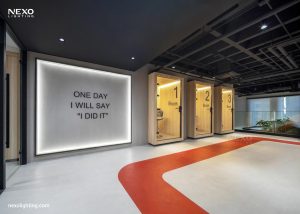

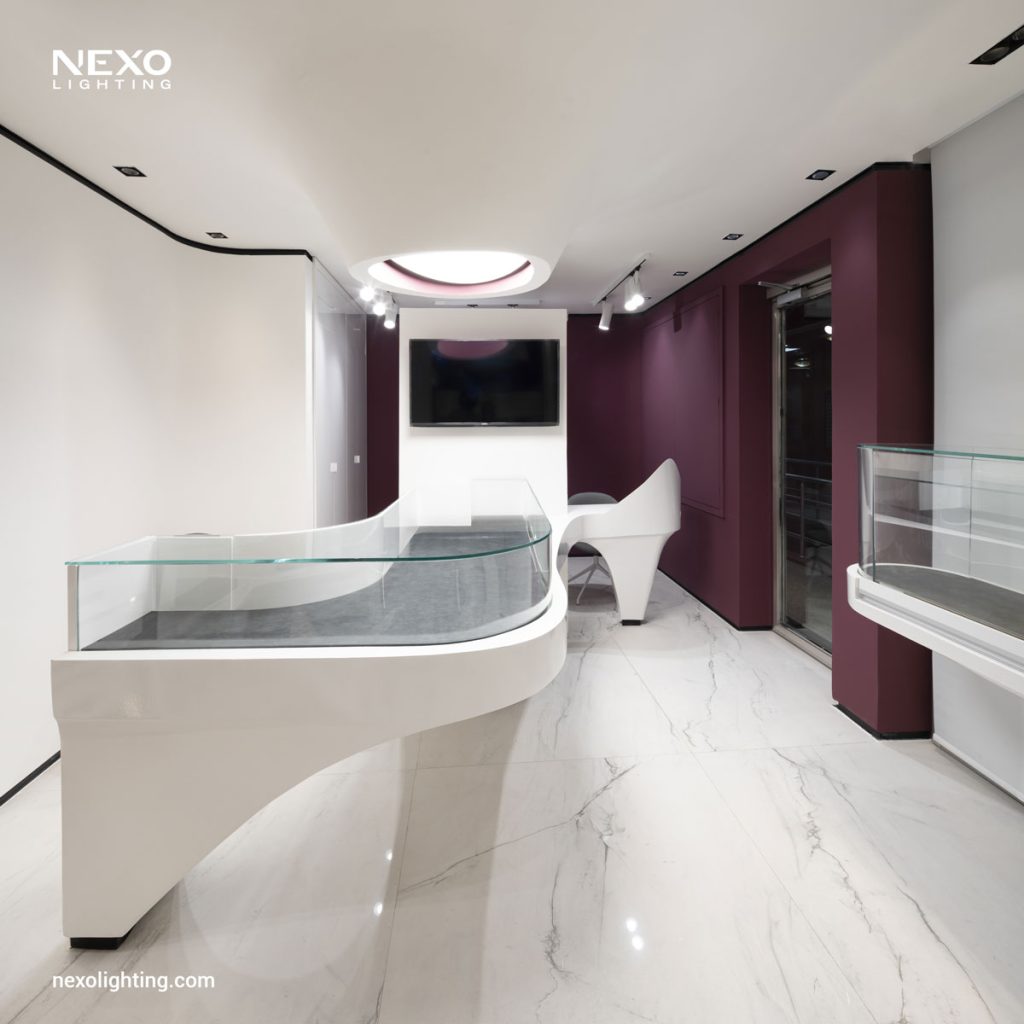

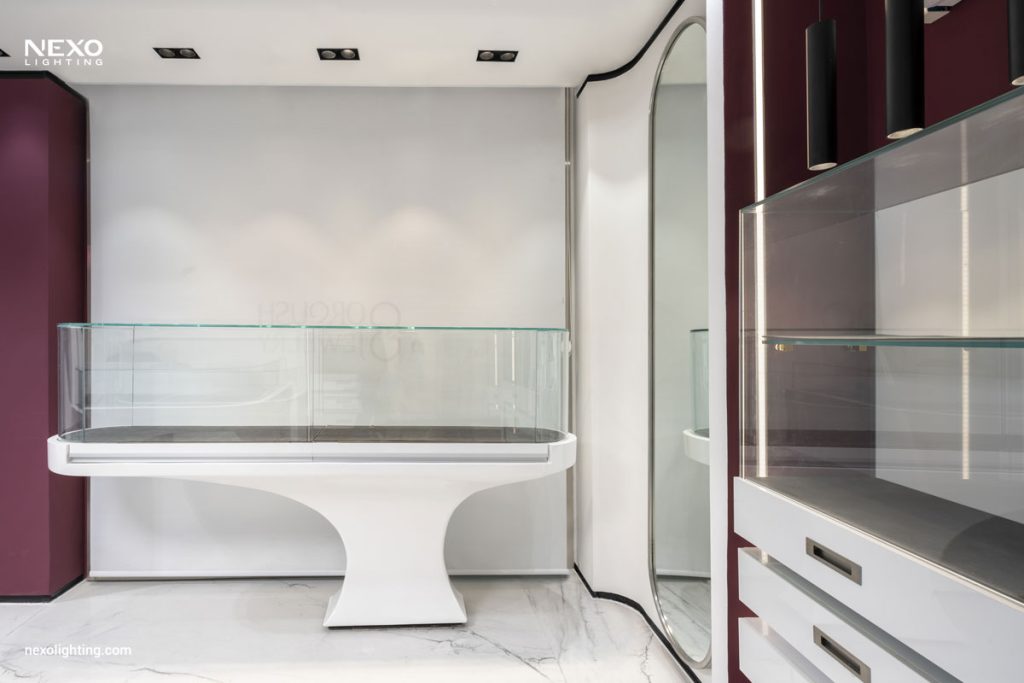

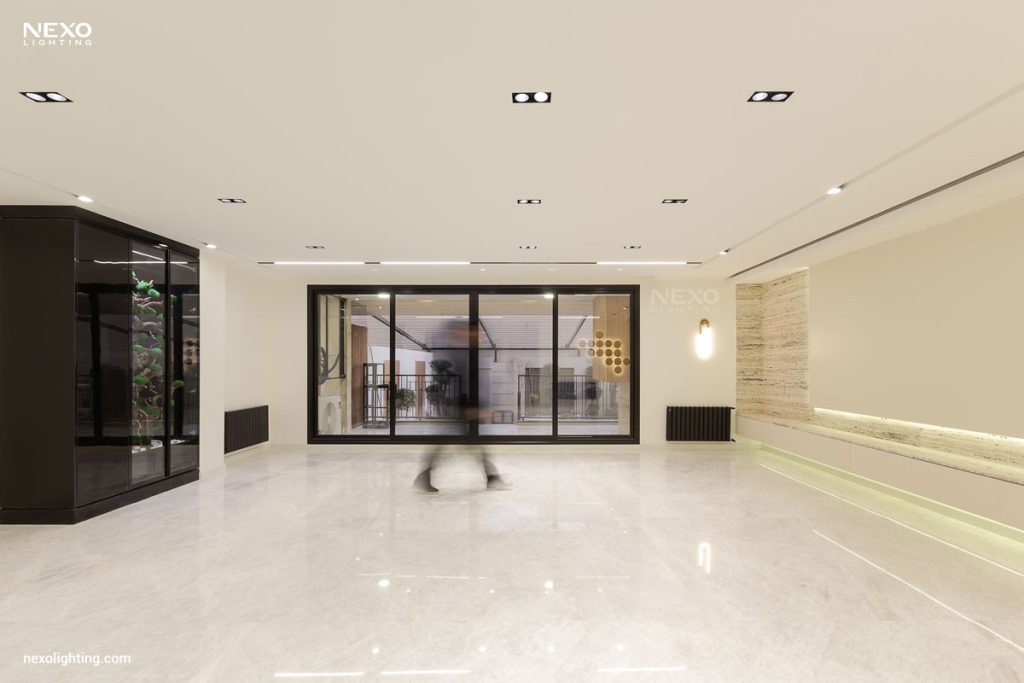

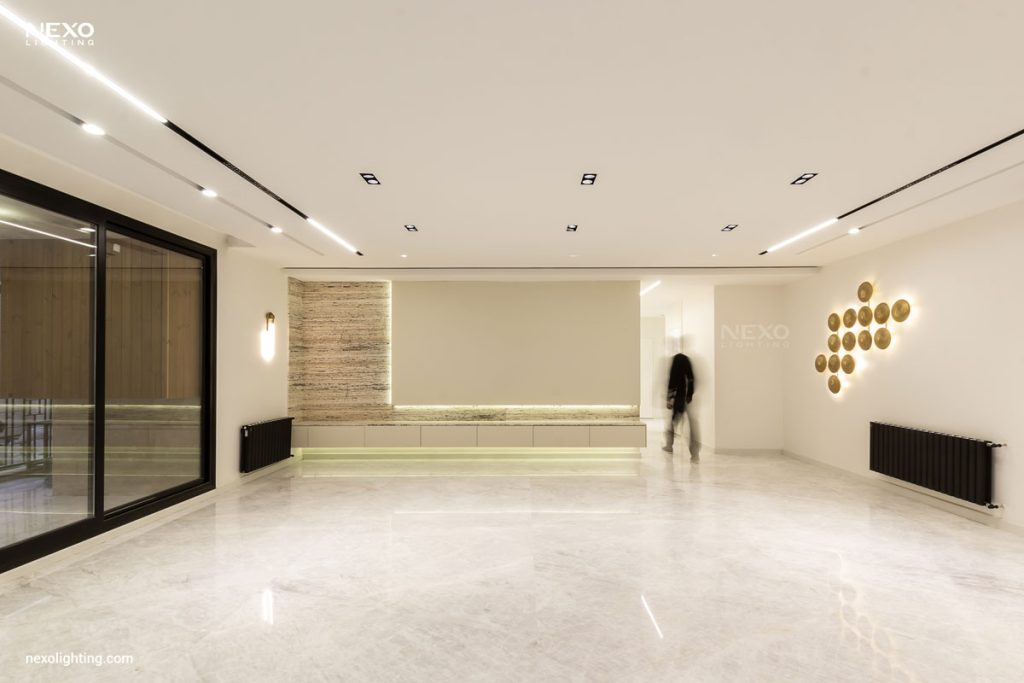

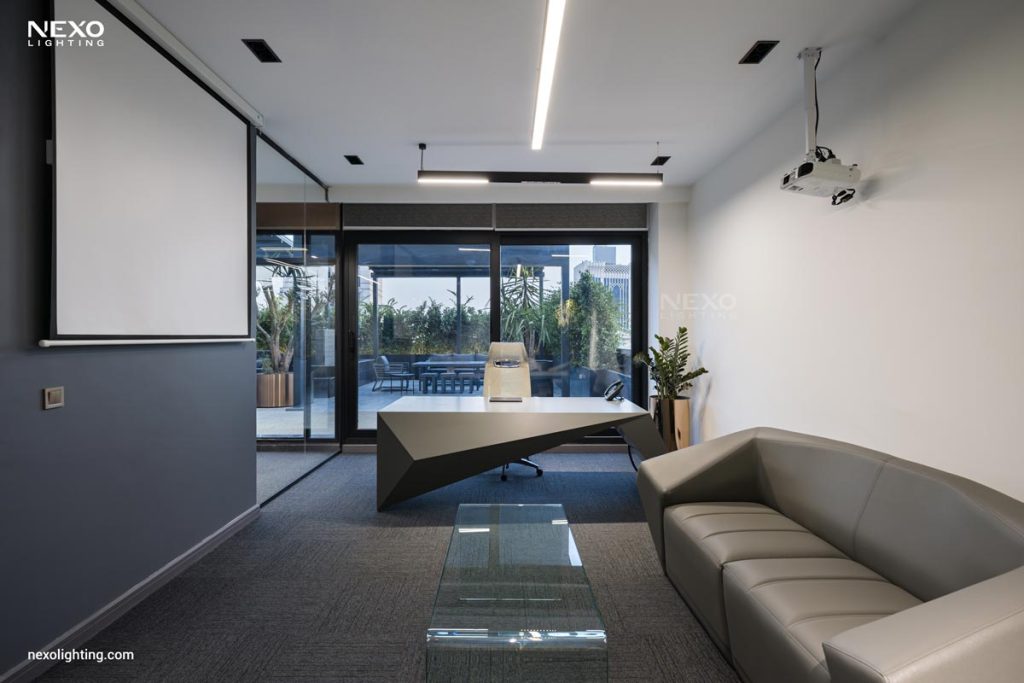

Ideal for a variety of applications, including offices, educational spaces, retail, hotels, residential interiors, and commercial environments.
A 5-year product warranty is included, ensuring long-lasting reliability and performance.
Showing all 2 results
3D Files
3D models and BIM objects available in multiple formats, including .max, .rvt, .fbx, and .obj.
Cross Section View
Technical detail
| Product | Power | Luminous flux | Efficacy | FWHM | Cutting | |||
| NM 1010 12 pmi | 10 w | 5.5 w | 1315 Lm | 485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 12° SYM | 105X105 mm |
| NM 1010 38 pmi | 10 w | 5.5 w | 1315 Lm | 485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 38° SYM | 105X105 mm |
| NM 1010 60 pmi | 10 w | 5.5 w | 1315 Lm | 485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 60° SYM | 105X105 mm |
| NM 1020 12 pmi | 2×10 w | 2X5.5 w | 2X1315 Lm | 2X485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 12° SYM | 200X105 mm |
| NM 1020 38 pmi | 2×10 w | 2X5.5 w | 2X1315 Lm | 2X485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 38° SYM | 200X105 mm |
| NM 1020 60 pmi | 2×10 w | 2X5.5 w | 2X1315 Lm | 2X485.7 Lm | 131.5 Lm/w | 88.3 Lm/w | 60° SYM | 200X105 mm |
