Pinto L Linear
Pinto L Linear

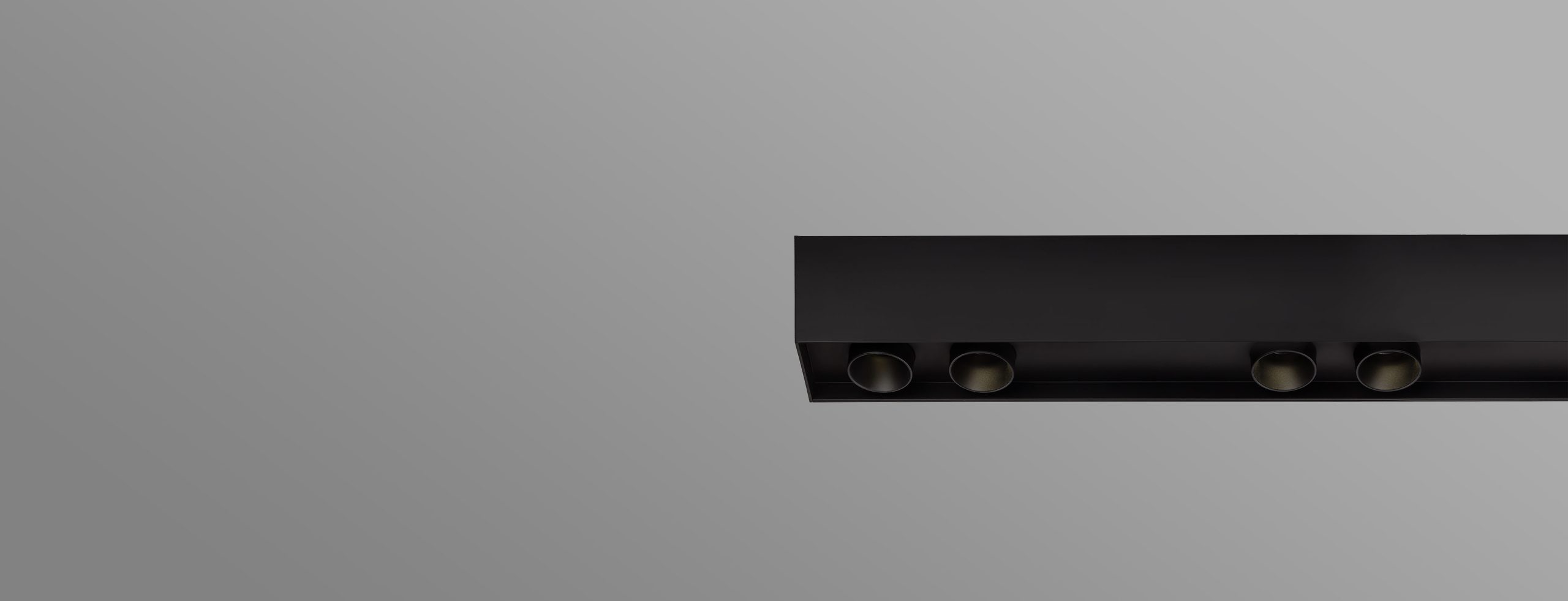

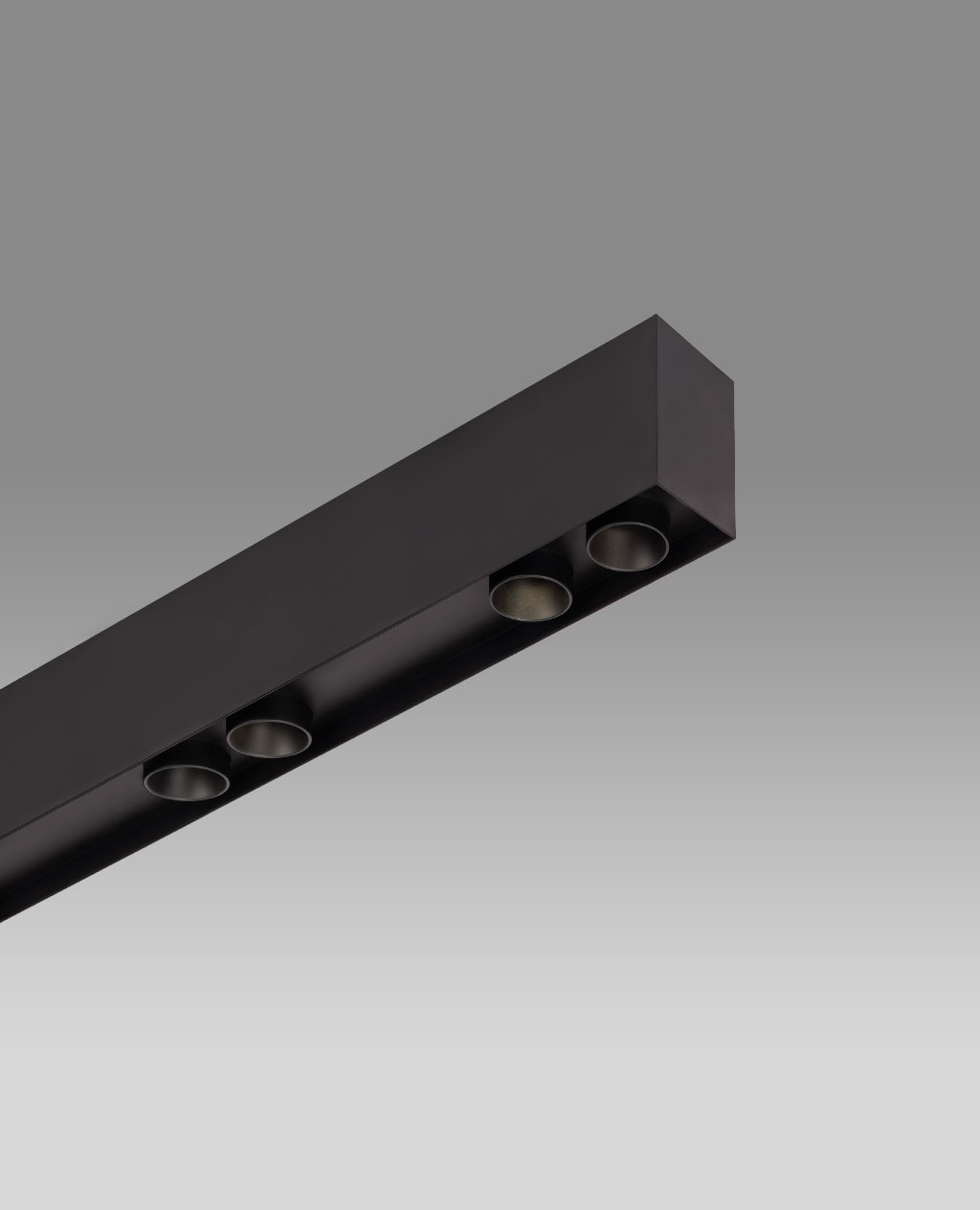

Pinto L, designed in a trimless style, is produced with Dark Light technology, completely glare-free, and available in various lengths and custom sizes.

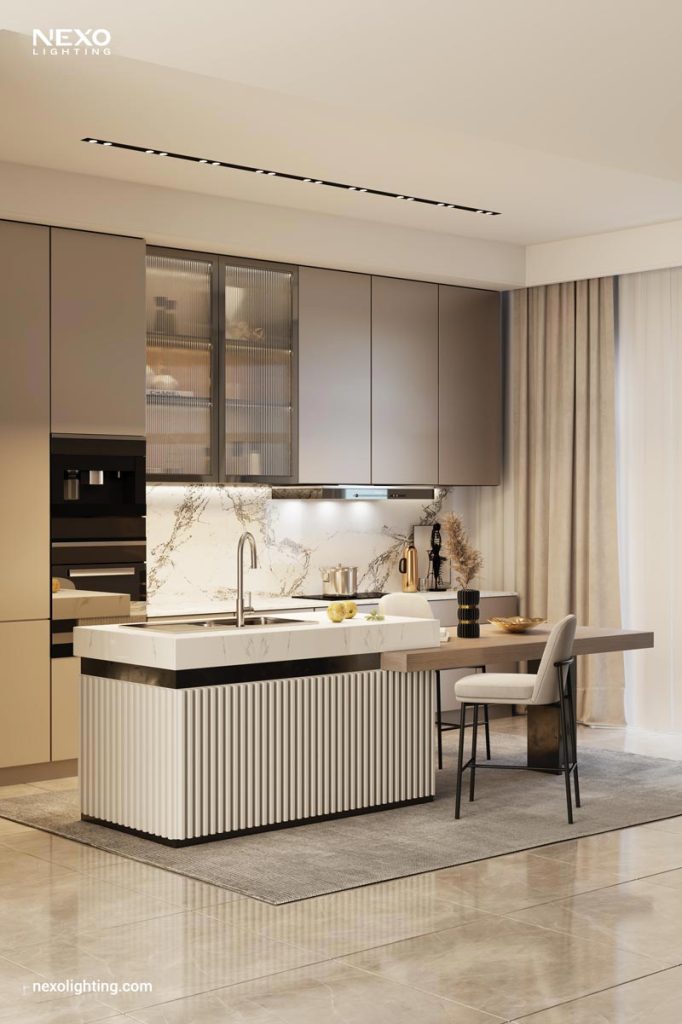

Ideal for a variety of applications, including offices, educational spaces, retail, hotels, residential interiors, and commercial environments.
A 5-year product warranty is included.
Showing the single result
3D Files
Cross Section View
Technical detail
| Product | Power | Luminous flux | Efficacy | FWHM | size |
| NP L 611 PMIT | 7 W | 532 Lm | 76 Lm/w | 15°/38°/60°/ SYM | 60.4 x 115 mm |
| NP L 617 PMIT | 10 W | 798 Lm | 79.8 Lm/w | 15°/38°/60°/ SYM | 60.4 x 170 mm |
| NP L 622 PMIT | 12 W | 1064 Lm | 88.6 Lm/w | 15°/38°/60°/ SYM | 60.4 x 225 mm |
| NP S 1111 PMIT | 12 W | 1064 Lm | 88.6 Lm/w | 15°/38°/60°/ SYM | 115 x 115 mm |
| NP L 611 PM | 7 W | 532 Lm | 76 Lm/w | 15°/38°/60°/ SYM | 60.4 x 115 mm |
| NP L 617 PM | 10 W | 798 Lm | 79.8 Lm/w | 15°/38°/60°/ SYM | 60.4 x 170 mm |
| NP L 622 PM | 12 W | 1064 Lm | 88.6 Lm/w | 15°/38°/60°/ SYM | 60.4 x 225 mm |
| NP SIN MODULE | 3.5 W | 266 Lm | 76 Lm/w | 15°/38°/60°/ SYM | Custom |
| NP DOU MODULE | 7 W | 532 Lm | 76 Lm/w | 15°/38°/60°/ SYM | Custom |
| NP TRI MODULE | 10 W | 798 Lm | 79.8 Lm/w | 15°/38°/60°/ SYM | Custom |
