Spotline System
Spotline System
The combination of linear lighting and spotlights offers a modern solution for delivering both general and accent lighting simultaneously.
SpotLine System not only provides general illumination but also excels at highlighting objects and creating focal points with its accent lighting capabilities.

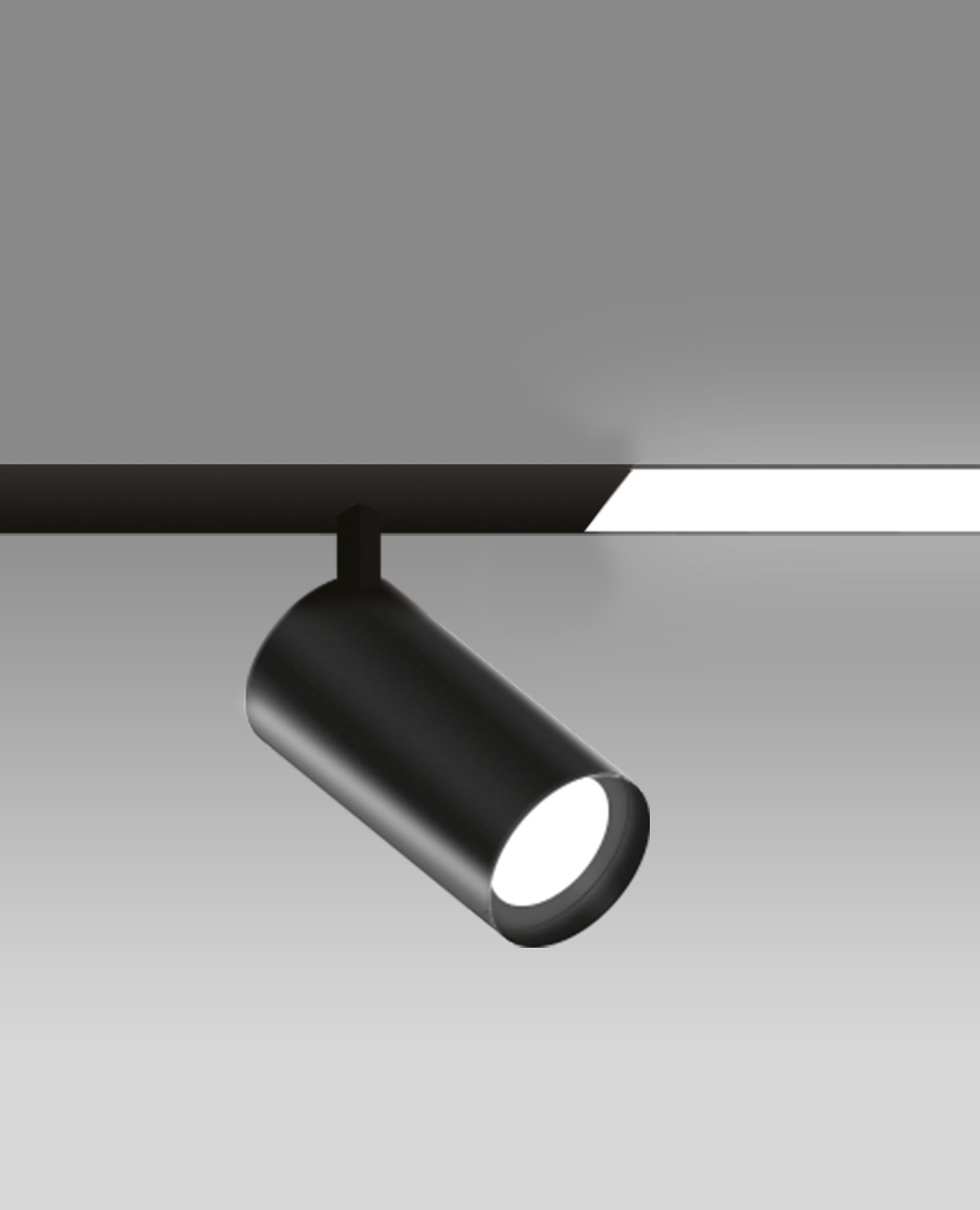

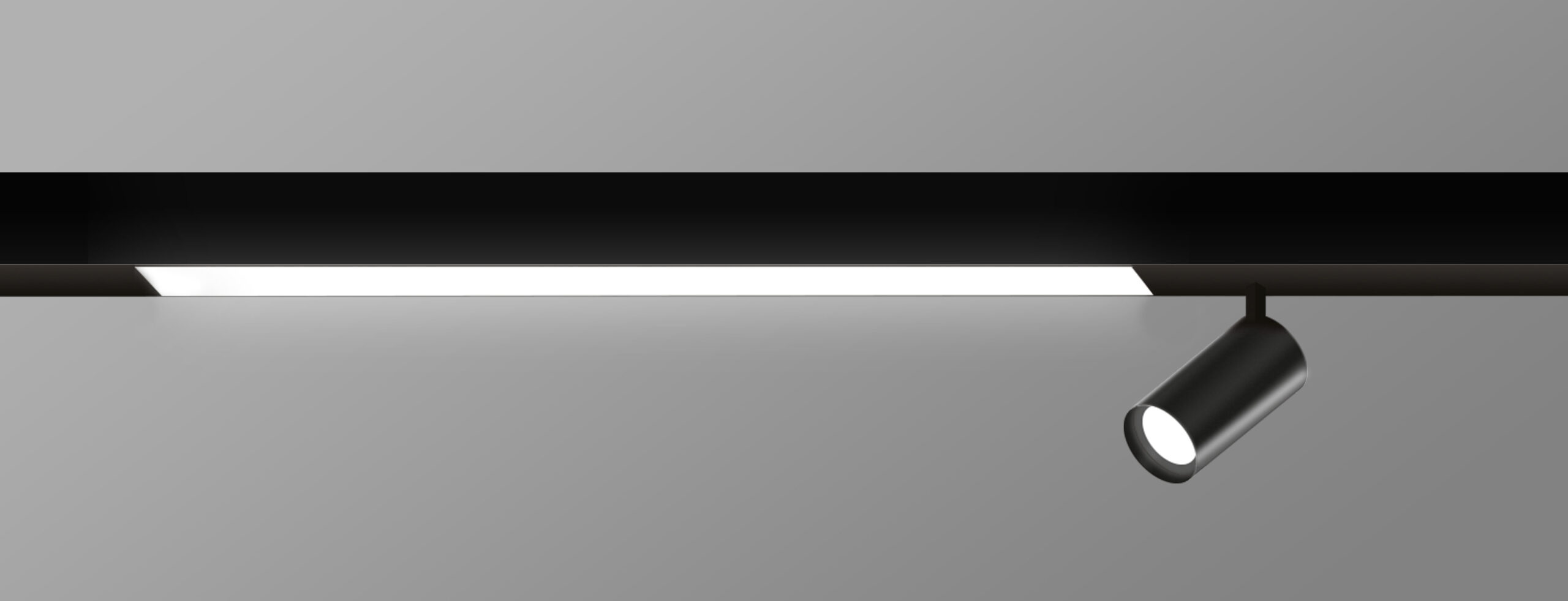

Available in various sizes, it comes in recessed, surface-mounted, and pendant configurations.

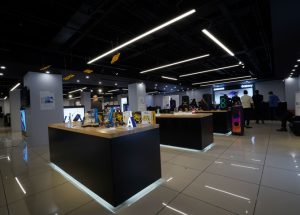

Ideal for a wide range of applications, including retail stores, showrooms, offices, hotels, and restaurants.
Includes a 5-year product warranty.
3D Files
3D models and BIM objects available in multiple formats, including .max, .rvt, .fbx, and .obj.
Cross Section View
Technical detail
| Product | Power | Luminous flux | Efficacy | FWHM | Size |
| NL 60 114 ◊ PM/PMP/PMI (H1) |
33.6 – 47.6 w | 3374 – 5516 Lm | 100 – 115 Lm/w | 1140 mm | |
| NL 60 171 ◊ PM/PMP/PMI (H1) |
49.4 – 70.4 w | 5061 – 8274 Lm | 102 – 117 Lm/w | 1710 mm | |
| NL 60 227 ◊ PM/PMP/PMI (H1) |
65.2 – 93.2 w | 6748 – 11032 Lm | 103 – 118 Lm/w | 2270 mm | |
| NL 60 284 ◊ PM/PMP/PMI (H1) |
81 – 116 w | 8435 – 13790 Lm | 104 – 118 Lm/w | 2840 mm | |
| NU 60 20 R PCL (H1) | 5.5 -10 w | 443 – 1230 Lm | 80.5 – 123 Lm/w | 20° SYM | Ø60×100 mm |
| NU 60 30 R PCL (H1) | 5.5 -10 w | 443 – 1230 Lm | 80.5 – 123 Lm/w | 30° SYM | Ø60×100 mm |
| NU 60 50 R PCL (H1) | 5.5 -10 w | 443 – 1230 Lm | 80.5 – 123 Lm/w | 50° SYM | Ø60×100 mm |
| Product | Power | Luminous flux | Efficacy | FWHM | Size |
| NL 90 114 ◊ PM/PMP/PMI (H1) |
33.6 – 47.6 w | 3374 – 5516 Lm | 100.42 – 115.88 Lm/w | 1140 mm | |
| NL 90 171 ◊ PM/PMP/PMI (H1) |
49.4 – 70.4 w | 5061 – 8274 Lm | 102.45 – 117.53 Lm/w | 1710 mm | |
| NL 90 227 ◊ PM/PMP/PMI (H1) |
65.2 – 93.2 w | 6748 – 11032 Lm | 103.50 – 118.37 Lm/w | 2270 mm | |
| NL 90 284 ◊ PM/PMP/PMI (H1) |
81 – 116 w | 8435 – 13790 Lm | 104.14 – 118.88 Lm/w | 2840 mm | |
| NU 90 20 R PCL | 27 w | 3268 Lm | 121.04 Lm/w | 20° SYM | Ø90×200 mm |
| NU 90 32 R PCL | 27 w | 3268 Lm | 121.04 Lm/w | 32° SYM | Ø90×200 mm |
| NU 90 60 R PCL | 27 w | 3268 Lm | 121.04 Lm/w | 60° SYM | Ø90×200 mm |
