Corner Line – indirect linear
Product specification
- Extruded aluminum housing with powder coating
- Anti UV PMMA or PC diffuser with uniform light distribution
- Polyamide terminal with through wiring
- High efficiency Tridonic SMD LED STRIP with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description

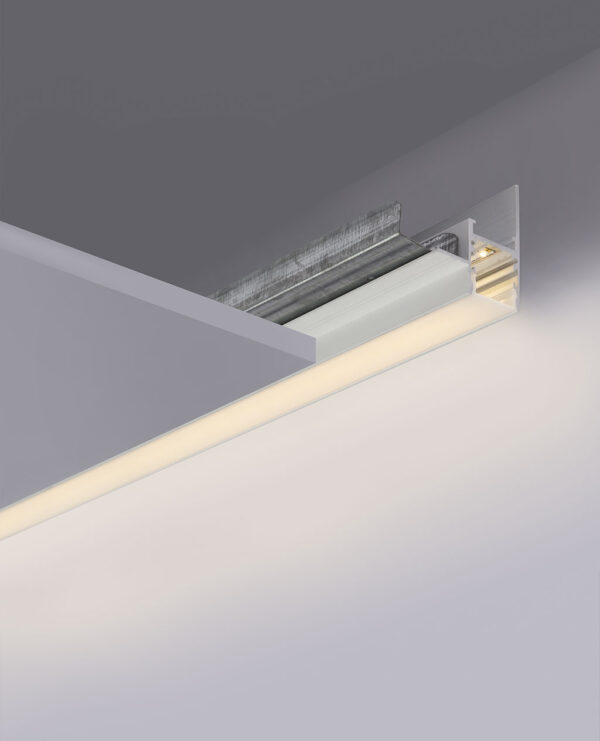

Corner Line is a family of linear lights used for indirect and decorative lighting. Its low-thickness design makes it possible to use in the corner and end of false ceilings.
-
- 5-year product warranty included.
Additional information
| Product family | corner line |
|---|---|
| Install type | Recessed |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED |
| Luminous flux | 1323, 1830 |
| Input power | 14.2, 22.6 |
| Luminous efficacy | 81, 93 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 6500K, RGB |
| life long | L70F50>60000h, L90F50>28000h |
| Macadam | 3 |
| Driver type | Constant voltage electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | +A |
| Power factor | ≥ 0.99 |
| Harmonic distortion | 10%> |
| IP degree | IP43 |
| Optic type | Diffuser |
| Optic material | poly-carbonate |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Retail |
