Cube – surface
Product specification
- Extruded aluminum housing for better heat exchange
- Electrostatic powder coating in different colors.
- High-efficiency Tridonic COB LED modules with more than 50000h lifelong
- CRI >90 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Good glare reduction due to recessed light point plane
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description

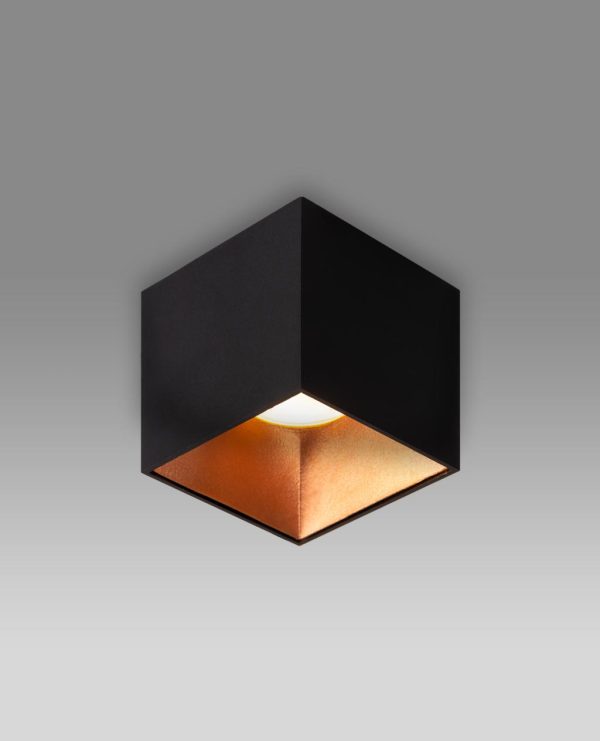

The cube-shaped lamp with a beautiful design installed as a surface mount, is among the category of downlights. It comes in the size of 8×8 centimeters and is produced in various colors. Ideal for various applications including offices, education, retail, hotels, residential, and commercial spaces.
-
- 5-year product warranty included.
Additional information
| Install type | Surface mount |
|---|---|
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Luminous flux | 853 |
| Light source | LED module |
| Input power | 10 |
| Luminous efficacy | 85.3 |
| Color rate | CRI > 80, CRI > 90 |
| Color tone | 3000K, 4000K |
| life long | L90F50>43000 |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | Non dimmable |
| Energy class | ++A |
| Power factor | ≥ 0.9 |
| Harmonic distortion | 10%> |
| Optic type | Lens |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Transportation |
| Product family | Cube |
| Product type | Downlights and spotlights, downlights |
