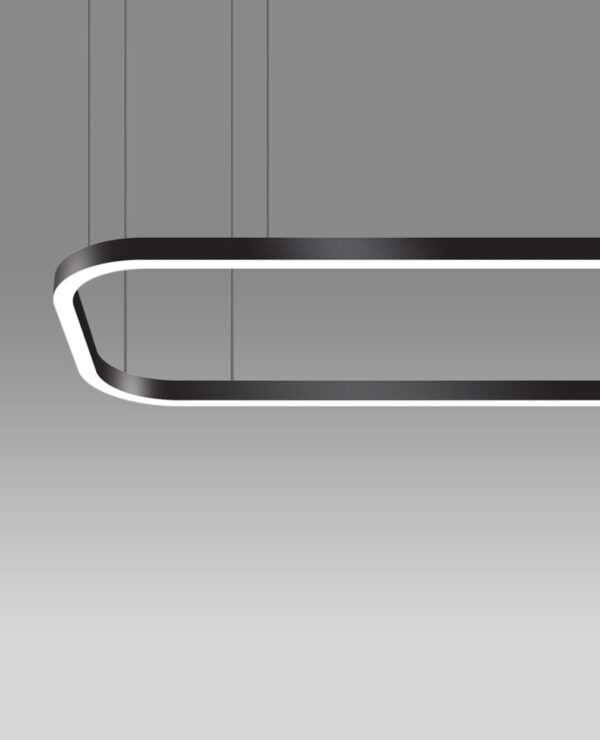

Curve Line – pendant
Product specification
- Extruded aluminum housing with powder coating
- Anti UV PMMA or PC diffuser with uniform light distribution
- Polyamide terminal with through wiring
- High efficiency Tridonic SMD LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 5000k, 6500k, tunable white
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description
Curve Line is a family of linear lighting with various geometric shapes, suitable for modern architectural spaces and ideal for a wide range of applications including offices, education, retail, hotels, residential and commercial spaces.
-
- 5-year product warranty included.
Additional information
| Install type | Pendant |
|---|---|
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 5000K, 6500K, Tunable white |
| Macadam | 3 |
| Driver type | Constant voltage electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | +A |
| Power factor | ≥ 0.99 |
| Harmonic distortion | 10%> |
| IP degree | IP43 |
| Optic type | Diffuser |
| Optic material | poly-carbonate |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Retail |
