Echo Plus 100 reflector – surface mounted
Product specification
- Aluminum housing for better heat exchange
- Electrostatic powder coating
- High efficiency Tridonic SMD LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k
- Reflector with different beam angles
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description

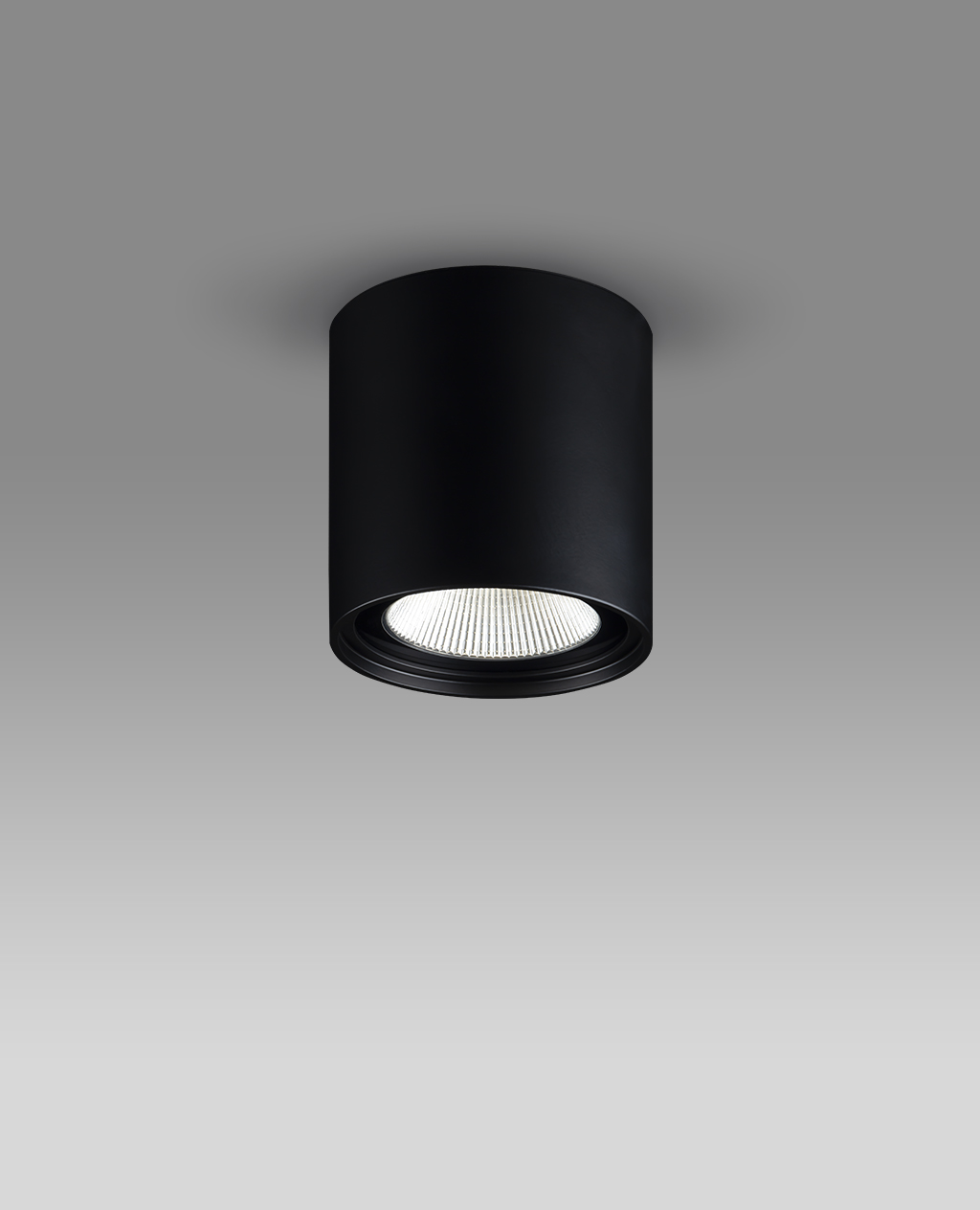

ECHO PLUS is a surface-mounted downlight that is ideal for providing general lighting in interior places thanks to its high efficiency. Ideal for various applications including offices, education, retail, hotels, residential, and commercial spaces.
-
- 5-year product warranty included.
Additional information
| Product family | Echo |
|---|---|
| Install type | Surface mount |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED module |
| Luminous flux | 727 |
| Input power | 9 |
| Luminous efficacy | 80.78 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K |
| life long | L70F50>60000h, L90F50>23000 |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | 0-10v, DALI, Non dimmable, Switch dim |
| Energy class | +A |
| Power factor | ≥ 0.9 |
| Harmonic distortion | 10%> |
| IP degree | IP43 |
| Optic type | Diffuser |
| Optic characteristic | reflector |
| Terminal type | Polyamide |
| Terminal characteristic | Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Retail, Sport facilities, Transportation |
