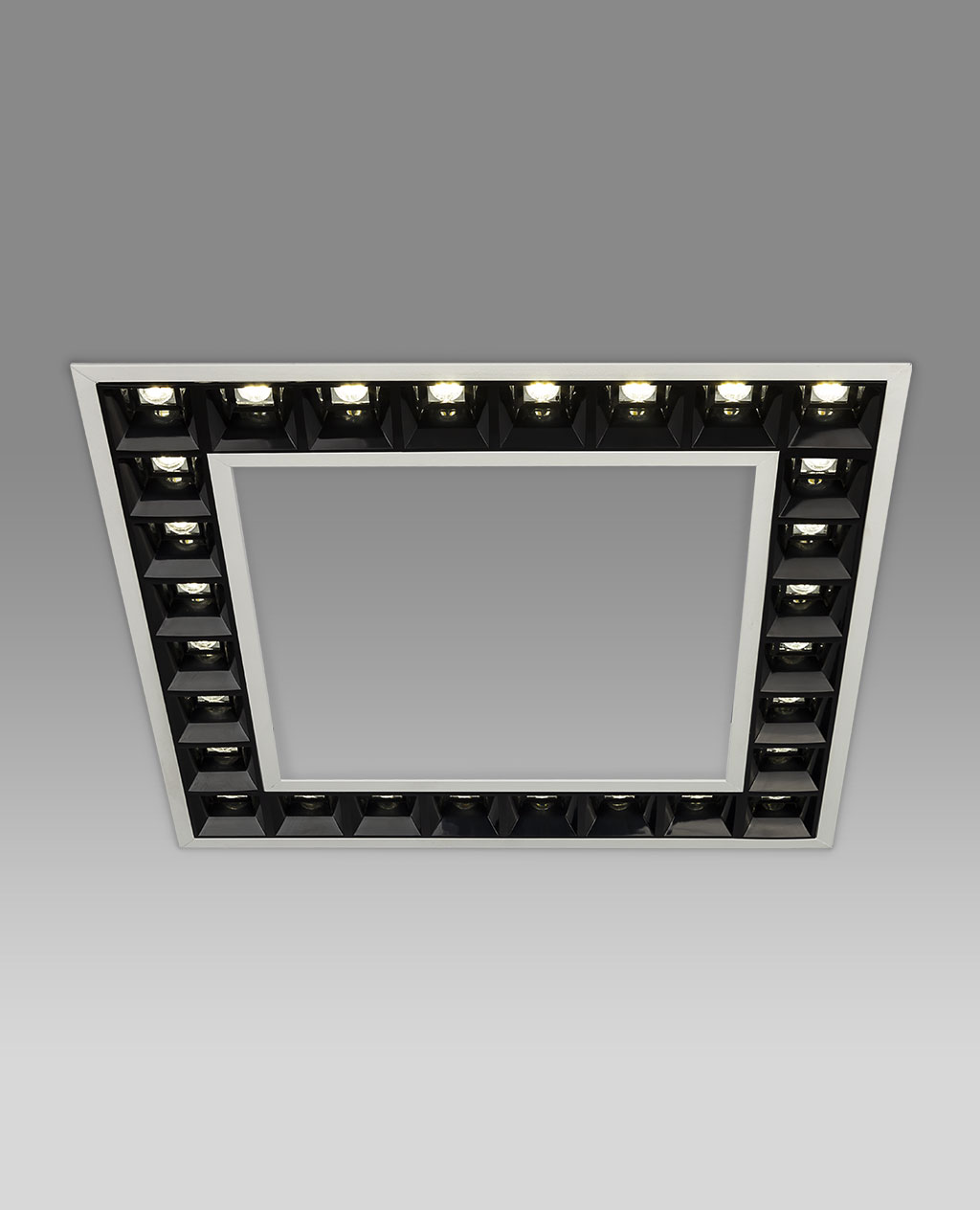

Lenza SQ – recessed
Product specification
- Glare free design ( UGR≈0 )
- Extruded aluminum housing with powder coating
- Acrylic high efficiency lens with different beam angles
- High efficiency Tridonic SMD LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 5000k, 6500k & tunable white
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description
Lenza is a family of linear recessed multi-downlights, which is an innovative linear solution for offering maximum lighting and design effects. In Lenza, there are high-quality lenses with different beam angles that allow a small light source to illuminate a large area of space. The luminaire is totally glare-free and provides comfortable lighting without causing disturbing glare and no annoying sense of light in the environment.
- 5-year product warranty included.
Additional information
| Install type | Recessed |
|---|---|
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Luminous flux | 2039, 4080 |
| Light source | LED module |
| Input power | 26, 52 |
| Luminous efficacy | 118.6, 72.8 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 5000K, 6500K, Tunable white |
| life long | L90F50>43000 |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | ++A |
| Power factor | ≥ 0.9 |
| Harmonic distortion | 10%> |
| Optic type | Lens |
| light distribution angle | 80, 50 Degree |
| Optic material | Acrylic |
| Optic characteristic | unti-glare |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Hospitality, Offices, Residential, Transportation |
| Light spread type | Direct |
| Install surface type | Brick, Concrete, Plaster board, Rabits, Wooden surfaces |
| Product family | LENZA |
| Product type | downlights, Linear luminaries |
