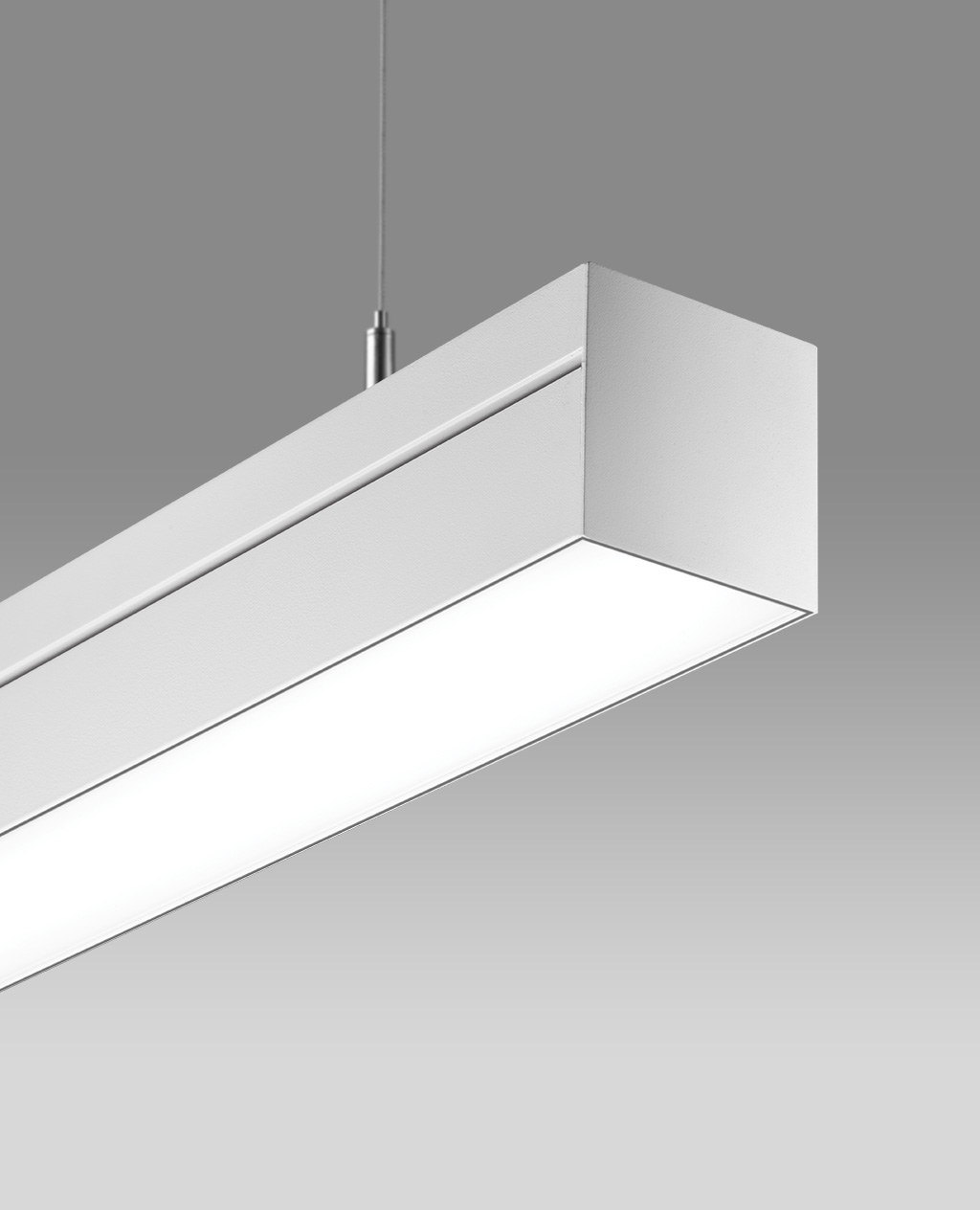

Line 90 – pendant
Product specification
- Extruded aluminum housing with powder coating
- Anti UV PMMA or PC diffuser with uniform light distribution
- Polyamide terminal with through wiring
- High efficiency Tridonic linear SMD LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 5000k, 6500k & tunable white
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description
The pendant linear light model Line 90, featuring a minimalist design and LED light source, can be manufactured in custom lengths and is suitable for various applications including offices, education, retail, hotels, residential, and commercial spaces, with minimalist and modern designs.
-
- 5-year product warranty included.
Additional information
| Product family | Line |
|---|---|
| Product code | NL 90 PMP |
| Install type | Pendant |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED module |
| Luminous flux | 3374, 5516 |
| Input power | 33.6, 47.6 |
| Luminous efficacy | 100.42, 115.88 |
| Color rate | CRI > 80, CRI > 90 |
| Color tone | 3000K, 4000K, 5000K, 6500K, Tunable white |
| life long | L70F50>60000h |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | 0-10v, DALI, Non dimmable, Switch dim |
| Energy class | ++A |
| Power factor | ≥ 0.97, ≥ 0.99 |
| Harmonic distortion | 10%> |
| IP degree | IP43 |
| Optic type | Diffuser |
| Optic material | Acrylic, poly-carbonate |
| Optic characteristic | Non halogen, UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire, Non flammable solid wire |
| Usage | Educational, Health and hospital, Hospitality, Industry, Offices, Residential, Retail, Sport facilities, Transportation |
