View 30
Product specification
- 3.5cm width with an extruded aluminum housing
- Degree of protection (IP68) and impact resistance (IK10)
- Anti UV PMMA or PC diffuser with uniform light distribution
- High efficiency Tridonic SMD LED STRIP with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 5000k & RGB
- Electronic control gear with more than %90 efficiency and >0.9 Ø
Product Notes
Technical Detail
Accessories
Downloads
Description

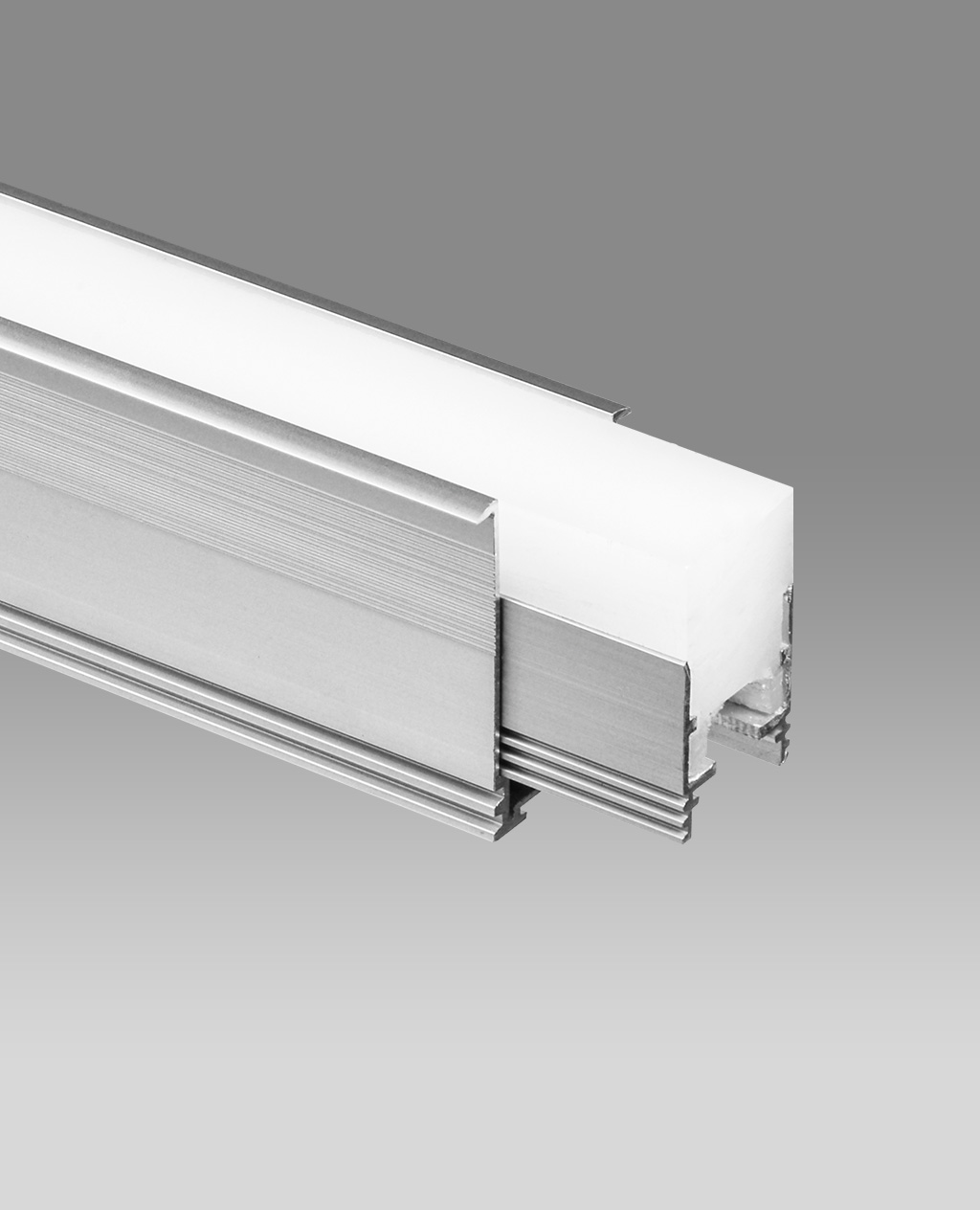

View is a weather-proof linear luminaire with a higher degree of protection (IP68) and higher impact resistance (IK10), ideal for extreme environments including outdoors, facade lighting, pools, damp rooms, and humid spaces.
Manufactured in a width of 3.5 cm and custom-made lengths with a side extruded aluminum housing.
-
- 5-year product warranty included.
Additional information
| Product family | View |
|---|---|
| Product code | NV 30 PMi |
| Install type | Recessed |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED |
| Luminous flux | 1120, 600 |
| Input power | 14, 6.2 |
| Luminous efficacy | 80, 96.77 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 5000K, RGB |
| life long | L70F50>60000h |
| Macadam | 3 |
| Driver type | Constant voltage electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | +A |
| Power factor | ≥ 0.99 |
| Harmonic distortion | 10%> |
| IP degree | IP68 |
| IK degree | IK10 |
| Optic type | Diffuser |
| Optic material | Acrylic, polyurethane |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Retail, Sport facilities, Transportation |
| Light spread type | Direct |
| Install surface type | Brick, Concrete, Plaster board, Rabits, Wooden surfaces |
| Product type | High-protection luminaries, Linear luminaries |
