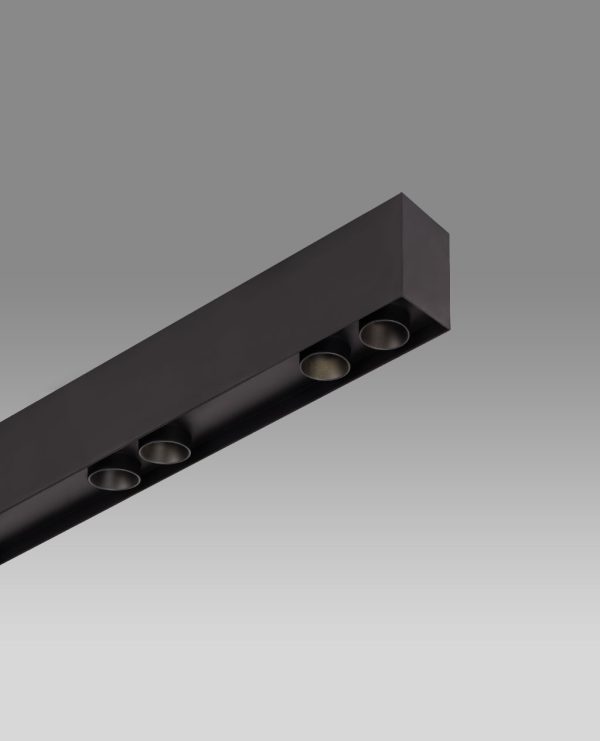

Pinto L
Product specification
- Extruded aluminum housing for better heat exchange
- Electrostatic powder coating.
- High efficiency Tridonic SMD LED modules with more than 50000h lifelong
- CRI >90 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Anodized reflector
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description
Pinto L, designed in a trimless style, is produced with Dark Light technology, completely glare-free, and available in various lengths and custom sizes.
- 5-year product warranty included.
Additional information
| Housing | Extruded aluminum |
|---|---|
| Body color | Electrostatic powder |
| Light source | LED module |
| Color rate | CRI > 80, CRI > 90 |
| Color tone | 3000K, 4000K |
| life long | L90F50>43000 |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | Non dimmable |
| Energy class | ++A |
| Power factor | ≥ 0.9 |
| Harmonic distortion | 10%> |
| Optic type | Reflector |
| Optic material | poly-carbonate |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Transportation |
| Product family | PINTO |
| Product type | downlights, Linear luminaries |
| Input power | 7, 10, 12 |
| Luminous flux | 1064, 532, 798 |
| Luminous efficacy | 76, 79.8, 88.6 |
