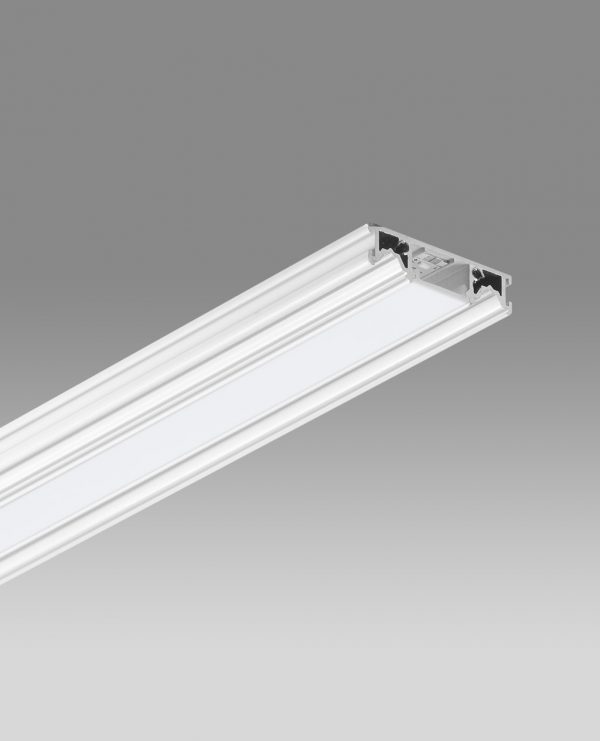

Slim 45 – trimless recessed
Product specification
- Extruded aluminum housing with powder coating
- Anti UV PMMA or PC diffuser with uniform light distribution
- Polyamide terminal with through wiring
- High efficiency Tridonic SMD LED STRIP with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 6500k & RGB
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
- 5-year guarantee
Product Notes
Technical Detail
Accessories
Downloads
Description

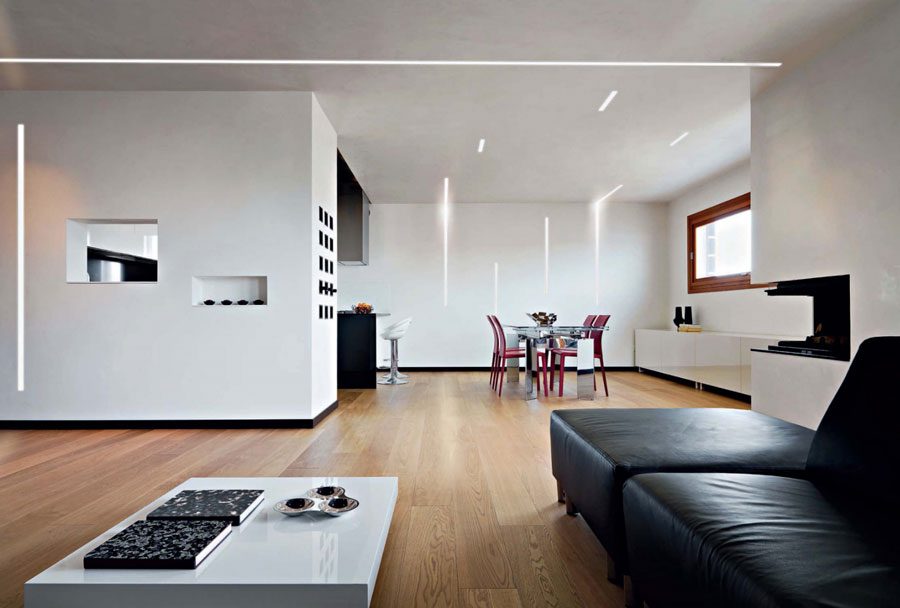

The trimless recessed linear light model Slim 45, featuring a minimalist design and LED light source, is manufactured in custom lengths and is suitable for various applications including offices, education, retail, hotels, residential, and commercial spaces, with minimalist and modern designs.
-
- 5-year product warranty included.
Additional information
| Product family | Slim |
|---|---|
| Product code | NLS 45 Pci |
| Install type | Recessed |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Light source | LED |
| Luminous flux | 881 |
| Input power | 10 |
| Luminous efficacy | 88 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 6500K, RGB |
| life long | L70F50>60000h, L90F50>28000h |
| Macadam | 3 |
| Driver type | Constant voltage electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | +A |
| Power factor | ≥ 0.99 |
| Harmonic distortion | 10%> |
| IP degree | IP43 |
| Optic type | Diffuser |
| Optic material | poly-carbonate |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Retail |
