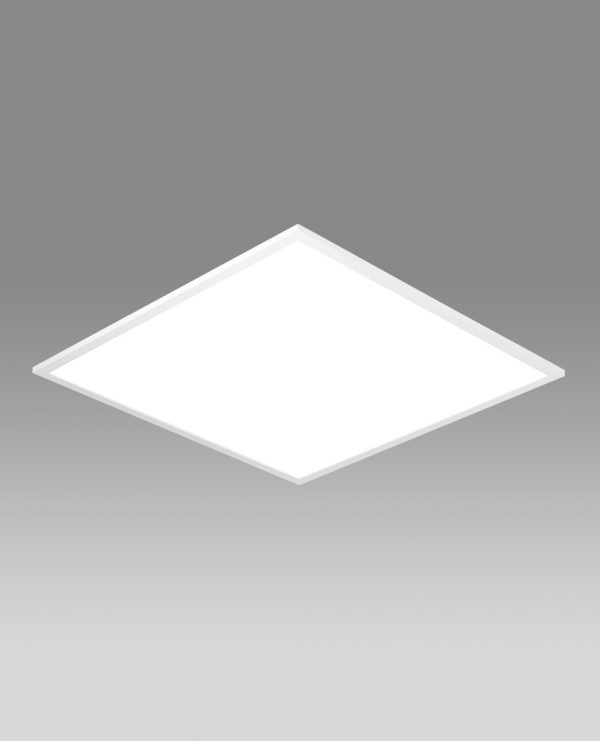

Tile 60 x 60 Panel – recessed
Product specification
- Aluminum frame with powder coating
- High efficiency tridonic SMD LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k, 6500k
- Anti UV PS diffuser with uniform light distribution and low glare
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description

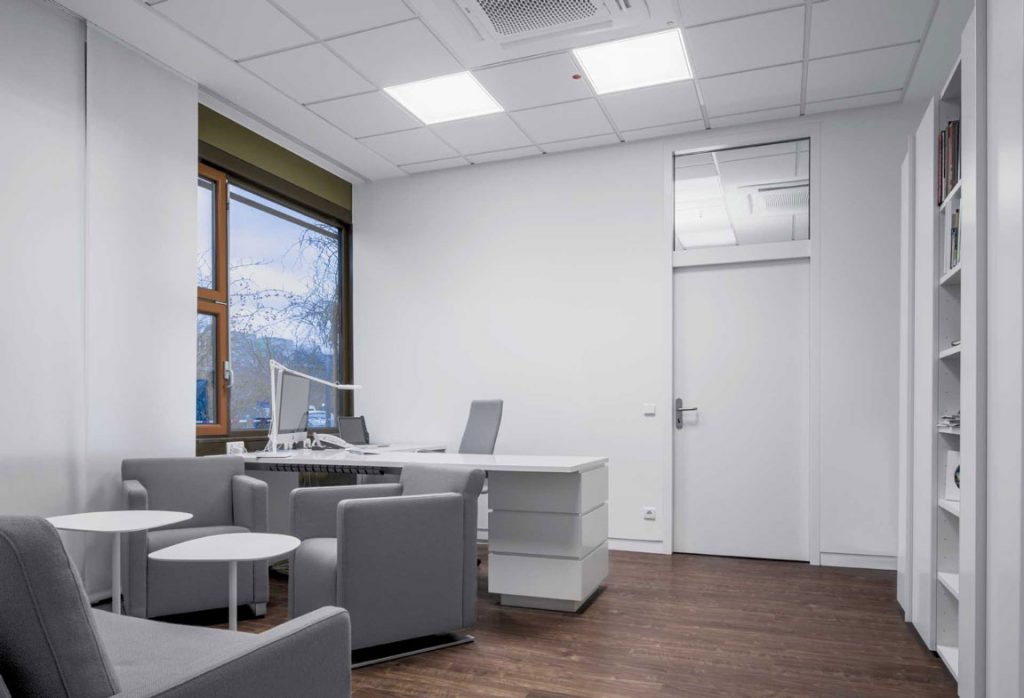

Tile is an edge-lit LED panel with a low-height design, low glare, and uniform illuminance. Ideal for a variety of applications including offices, education, retail, hotels, hospitals, and residential and commercial spaces.
- 5-year product warranty included.
Additional information
| Product family | Tile |
|---|---|
| Product code | NTI 66 Psi |
| Install type | Recessed |
| Body color | White |
| Light source | LED |
| Luminous flux | 4000 |
| Input power | 40 |
| Luminous efficacy | 100 |
| Color rate | CRI > 80 |
| Color tone | 3000K, 4000K, 6500K |
| life long | L70F50>30000h |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | Non dimmable |
| Energy class | +A |
| IP degree | IP42 |
| Optic type | Diffuser |
| Optic material | Polystyrene |
| Optic characteristic | Prismatic, UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Offices, Retail |
| Product type | General lighting |
