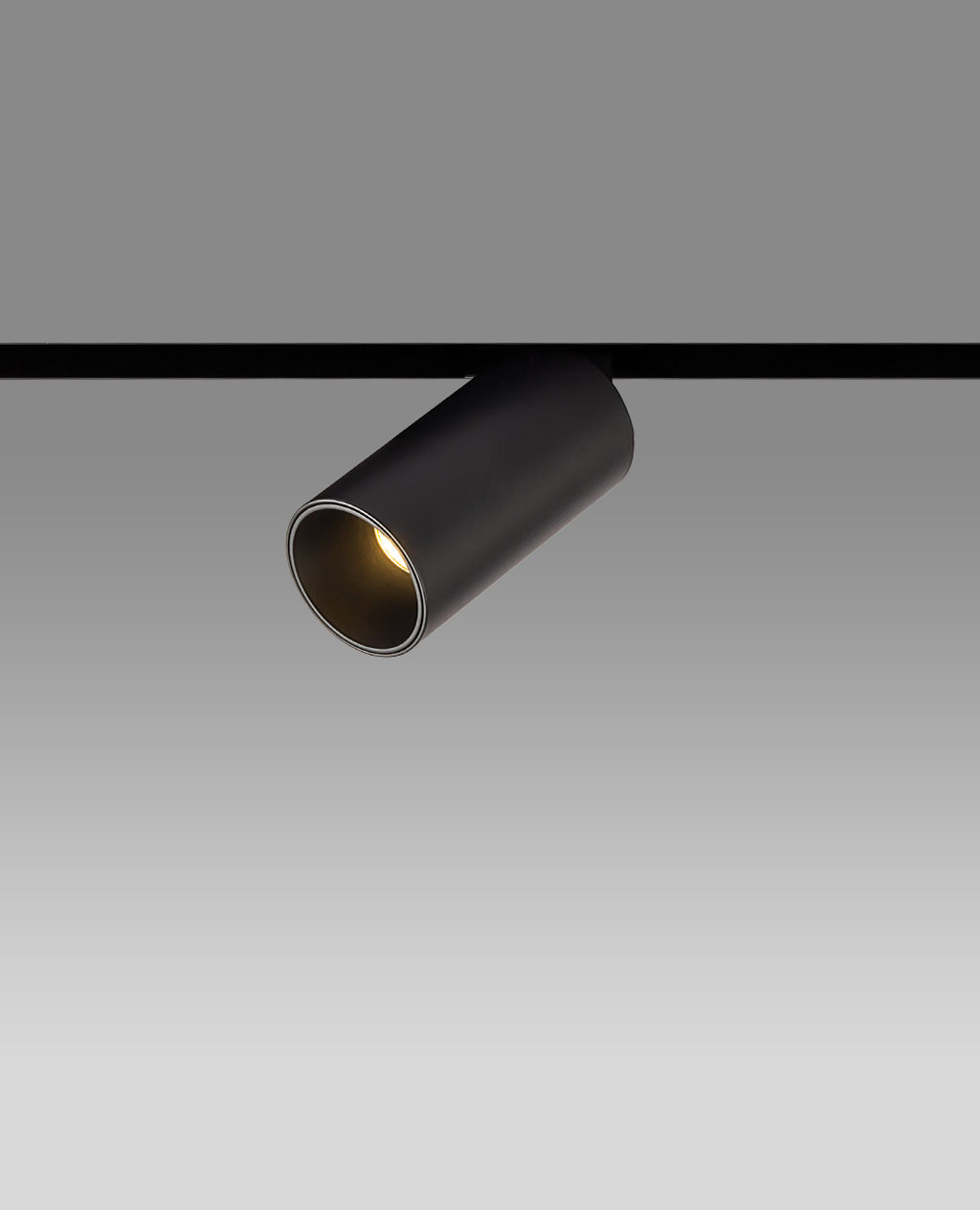

Unique 40 – magnetic
Product specification
- Extruded aluminum housing with powder coating
- High efficiency Tridonic COB LED modules with more than 50000h lifelong
- CRI >80 and MacAdam step 3
- Available in color temperatures: 3000k, 4000k
- Different beam angles for many applications
- Electronic control gear with more than %90 efficiency and >0.9 Ø
- Non-dimmable driver or dimming options: DALI, 0-10V Dim, Switch DIM, Casambi upon request
Product Notes
Technical Detail
Accessories
Downloads
Description

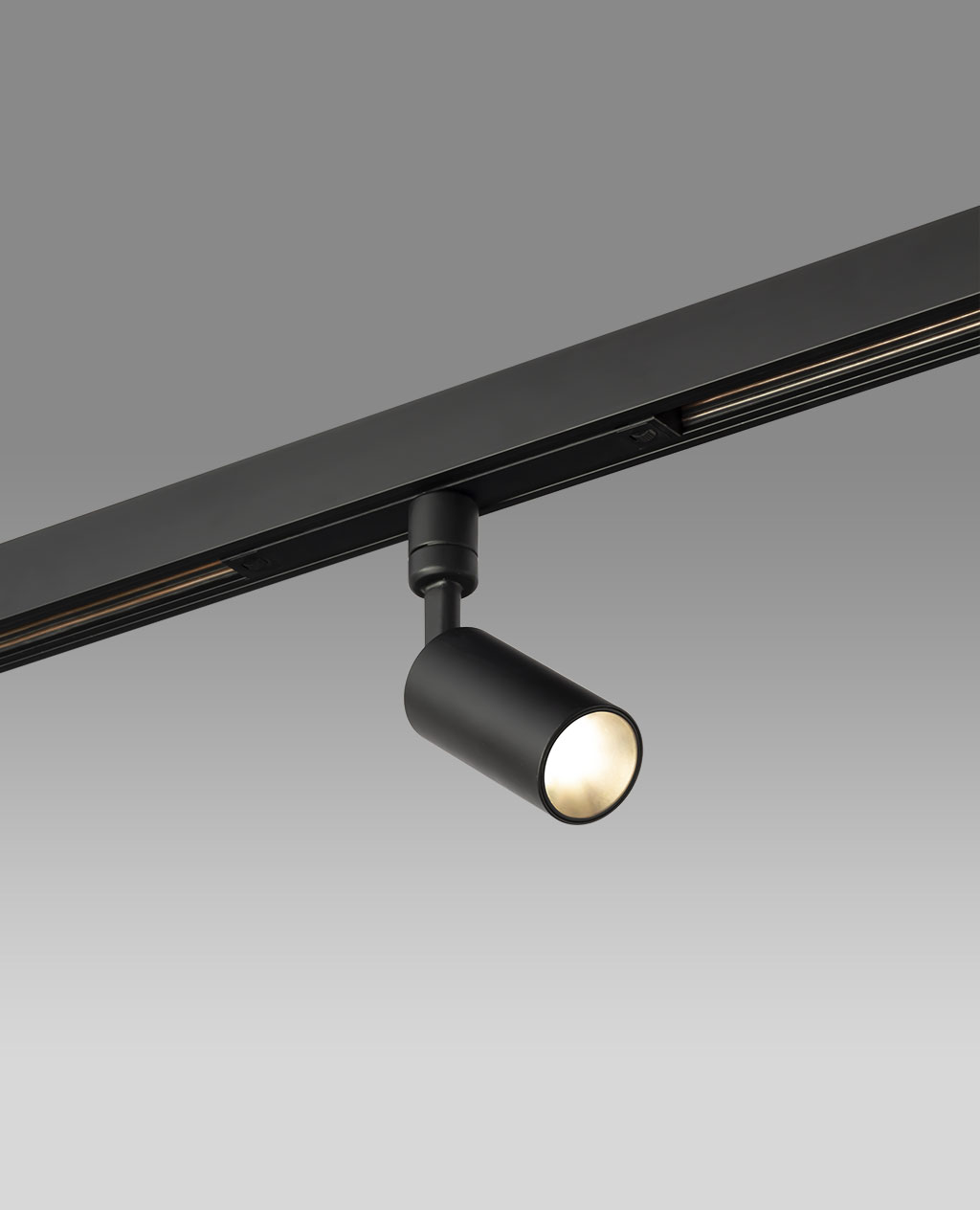

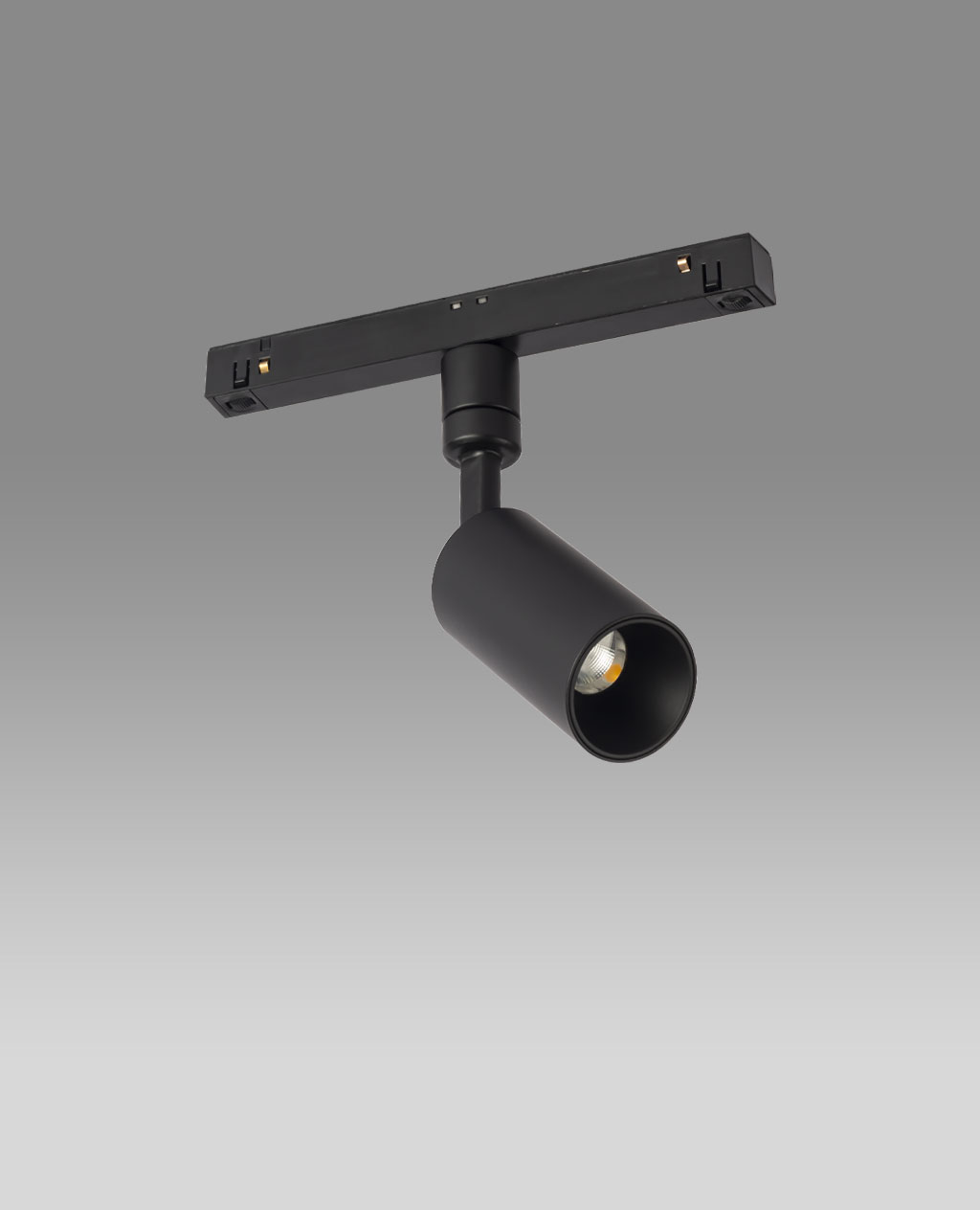

In the Multi Track System, lighting modules are magnetically connected to 48V low-voltage tracks and can be easily repositioned, depending on the type of space arrangement.
Unique is a magnetic luminaire, suitable for creating accent lighting, wallwashing, and making pleasant lighting conditions for presentations.
-
- A 5-year product warranty is included
- See: All magnetic luminaires
Additional information
| Product code | NU 40 … R PCT 48V |
|---|---|
| Install type | Track mount |
| Housing | Extruded aluminum |
| Body color | Electrostatic powder |
| Luminous flux | 680 |
| Light source | LED module |
| Input power | 6 |
| Luminous efficacy | 113.3 |
| Color rate | CRI > 80, CRI > 90 |
| Color tone | 3000K, 4000K |
| life long | L90F50>43000 |
| Macadam | 3 |
| Driver type | Constant current electronic driver |
| Dim ability | DALI, Non dimmable, Switch dim |
| Energy class | ++A |
| Power factor | ≥ 0.9 |
| Harmonic distortion | 10%> |
| Optic type | Lens, Reflector |
| Optic material | poly-carbonate |
| Optic characteristic | UV resistant |
| Terminal type | Polyamide |
| Terminal characteristic | Earth connection, Looping |
| cabling | 0-7mm-Solid wire |
| Usage | Educational, Health and hospital, Hospitality, Offices, Residential, Transportation |
| Product family | MULTI TRACK, UNIQUE |
